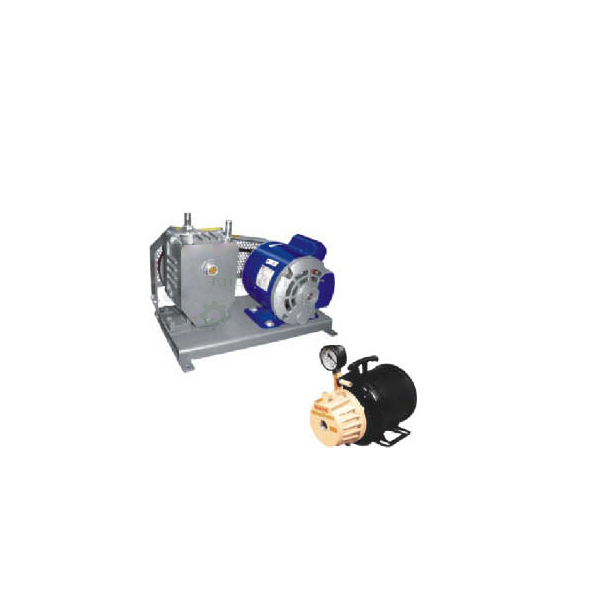

Rotary High Vacuum Pump
Product Code : EL-LEAA-11002
Rotary High Vacuum Pump (code EL-LEAA-11002) is a rotary oil sealed pump used to evacuate air from laboratory apparatus and vessels. It is motor driven through a pulley and V-belt on a painted rectangular base plate, has a metal pump case with an oil sight gauge and drain plug, runs continuously on a single phase 220/230 V, 50 Hz supply, and is offered in single or double stage form with a non-return valve, moisture trap and vacuum gauge as options.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Rotary, oil sealed |
| Duty | Continuous |
| Enclosure | Mild steel angle and sheet, painted |
| Housing material | CRC powder coated mild steel |
| Pump case | Metal case with drain plug and oil sight gauge |
| Drive | Motor driven through pulley and V-belt, mounted on a painted rectangular base plate |
| Power supply | Single phase AC, 220/230 V, 50 Hz |
| Options | |
| Stages | Single stage or double stage pump |
| Accessories | Non-return valve, moisture trap and vacuum gauge |
| Supply | |
| Product code | EL-LEAA-11002 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Rotary High Vacuum Pump Used For?
Vacuum pumps lower the pressure in a closed system for jobs such as vacuum filtration, degassing, vacuum drying and desiccation, and for evacuating apparatus before a test. In an oil sealed rotary pump a rotating mechanism carries gas from the inlet to the outlet while oil seals the clearances and lubricates the moving parts, and a double stage pump reaches a lower final pressure than a single stage one. The operator checks the oil level in the sight gauge before use, connects the apparatus through the moisture trap and non-return valve where fitted, and reads the vacuum on the gauge; the drain plug is used for oil changes.
What to Specify When Ordering
- Quantity — the number of pumps required.
- Stages — single stage or double stage pump.
- Accessories — whether the non-return valve, moisture trap and vacuum gauge are wanted.
Frequently Asked Questions
Is the pump single or double stage?
Both forms are offered: the pump can be supplied as single stage or double stage, the double stage form being chosen where a lower final pressure is needed.
How is the pump driven?
An electric motor drives the pump through a pulley and V-belt, with the motor and pump mounted together on a painted rectangular base plate.
How is the oil level checked and changed?
The metal pump case has an oil sight gauge for checking the level of the sealing oil and a drain plug for draining it out.
What does a moisture trap do?
It collects water vapour drawn from the apparatus before it reaches the pump, where moisture would otherwise mix with and spoil the sealing oil.
What is the non-return valve for?
It stops air and oil from being drawn back into the vacuum line from the pump side when the pump is switched off.
Can it run continuously?
Yes. It is designed for continuous duty, drawing power from a 50 Hz, 220/230 V single phase mains supply, and is housed in a painted mild steel enclosure.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Rotary High Vacuum Pump at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its general laboratory equipment and accessories such as ovens, baths, balances and measuring tools go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
