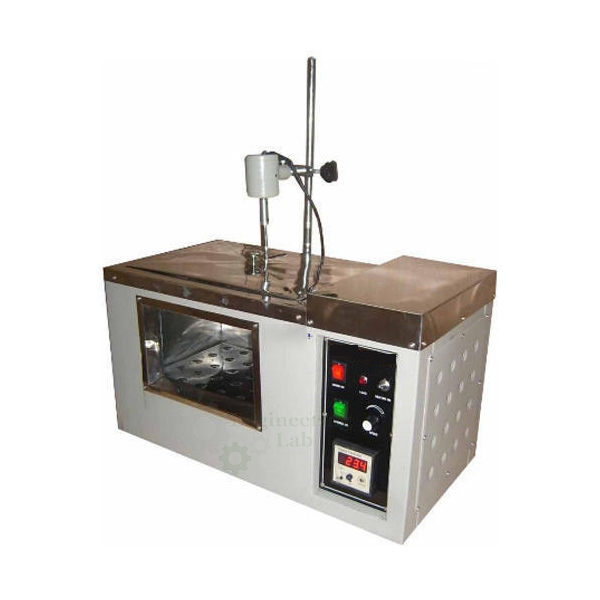

High Precision Water Bath
Product Code : EL-LEAA-11016
High Precision Water Bath (code EL-LEAA-11016) is a stirred, double walled water bath used to hold samples at a controlled temperature from ambient +5 °C to 95 °C. Its PT-100 sensor and microprocessor based PID controller give ±0.2 °C stability, capacity runs from 8 to 30 litre with 1.5/2.0 kW heating, and it has a 304 grade stainless steel tank and flat lid, a side glass window and dimensions of 430 × 240 × 265 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Construction | Double wall |
| Lid | Flat stainless steel lid that prevents evaporation |
| Inner tank and lid | Stainless steel 304 grade |
| Outer chamber | Mild steel, powder coated |
| Insulation | Mineral wool filling the space between the outer body and the stainless steel tank |
| Viewing | Glass window on one side to see samples placed in the bath |
| Drain | Drain plug for cleaning |
| Temperature control | Microprocessor based PID digital temperature indicator cum controller |
| Temperature range | Ambient +5 °C to 95 °C |
| Temperature stability | ±0.2 °C |
| Temperature sensor | PT-100 |
| Capacity | 8 to 30 litre |
| Heating | 1.5/2.0 kW |
| Stirring | Stainless steel FHP motor stirring shaft for continuous stirring; speed regulator on the front panel |
| Dimensions | 430 × 240 × 265 mm |
| Power supply | Single phase AC, 220/230 V ±10% |
| Product code | EL-LEAA-11016 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the High Precision Water Bath Used For?
Water baths warm samples, reagents and media to a set temperature and keep them there, for work such as thawing, melting agar, conditioning specimens and running reactions that must stay at one temperature. The bath is filled with water, the temperature is set on the PID controller, and the stirrer, adjusted from the front panel regulator, keeps the water moving so that the reading from the PT-100 sensor holds for the whole tank. Containers stand in the water with the flat lid closed to cut evaporation, the side window lets them be checked without lifting the lid, and the drain plug empties the tank after use.
What to Specify When Ordering
- Quantity — the number of water baths required.
- Capacity and heating — the tank size between 8 and 30 litre and the 1.5 or 2.0 kW heating to go with it.
Frequently Asked Questions
How closely is the water temperature held?
The PT-100 sensor and microprocessor based PID controller hold the water to within ±0.2 °C, over a range from ambient +5 °C to 95 °C.
What capacities are available?
The bath is offered in capacities from 8 to 30 litre with 1.5/2.0 kW heating, and the dimensions given are 430 × 240 × 265 mm.
Why does the bath have a stirrer?
The stainless steel FHP motor stirring shaft keeps the water moving, so the temperature is the same throughout the tank; its speed is set on the front panel regulator.
How is evaporation kept down?
A flat stainless steel lid covers the bath to prevent evaporation, and mineral wool insulation between the outer body and the tank reduces heat loss through the double wall.
Can the samples be seen without opening the lid?
Yes. A glass window on one side lets the samples placed in the bath be seen while the lid stays closed.
What is the tank made of?
The inner tank and lid are 304 grade stainless steel, the outer chamber is powder coated mild steel, and a drain plug is fitted for cleaning.
OEM Manufacturer
The High Precision Water Bath is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Water Bath (6 Holes) — rectangular six-hole boiling bath, 304 stainless steel inside, ambient +5 to 100 °C with LED display.
- Universal Water Bath Serological — rectangular stainless steel bath for serological work from ambient +5 to 99 °C with AC/DC gear motor.
- High Temp. Oil Bath — 250 °C stirred oil bath for oil and grease oxidation tests and thermometer calibration.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of baths and the capacity required between 8 and 30 litre and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
