Rubber Tubing
Product Code : EL-LEAA-10542

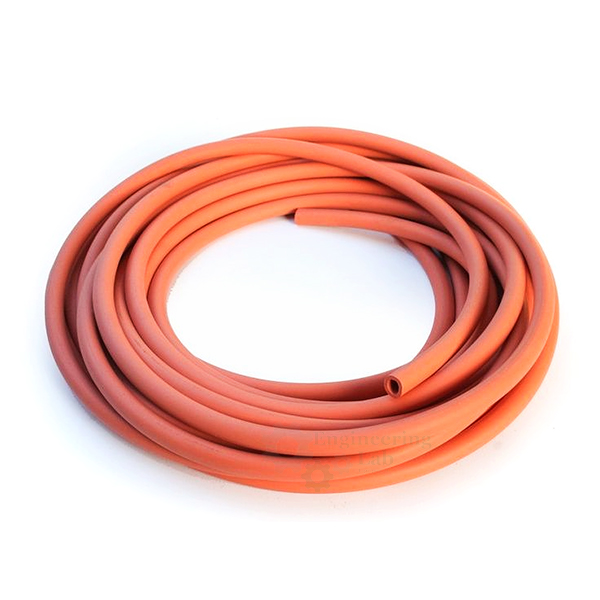

Rubber Tubing (code EL-LEAA-10542) is red rubber hose with a medium wall, sized to push over 5-6 mm glass tubes set in stoppers and onto other small diameter fittings for general laboratory connections. Its bore is 5 mm (3/16 inch), the outside diameter 8 mm (5/16 inch) and the wall 1.8 mm (1/16 inch); it is sold as a 3 meter (10 foot) coil and melts at 230 °F.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Material | Medium-wall red rubber |
| Inside diameter | 5 mm (3/16 inch) |
| Outside diameter | 8 mm (5/16 inch) |
| Wall thickness | 1.8 mm (1/16 inch) |
| Length | 3 meter (10 foot) coil |
| Melting point | 230 °F |
| Fits | 5-6 mm glass tubes in stoppers, and other small diameter fittings |
| Use | General laboratory use; too flexible for vacuum applications |
| Product code | EL-LEAA-10542 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Rubber Tubing Used For?
Flexible tubing joins pieces of glassware and apparatus so that liquids and gases can pass between them, for example from a stopper fitted with a glass tube to a condenser, a gas supply or a waste line. A length is cut from the 3 meter coil and pushed over the end of a 5-6 mm glass tube or similar fitting, where the 5 mm bore grips it. The 1.8 mm wall gives a flexible line for general work, but it is too soft to resist collapse under vacuum, so vacuum lines call for thicker-walled tubing.
What to Specify When Ordering
- Quantity — the number of 3 meter coils required.
Frequently Asked Questions
Which glass tube sizes does it fit?
Its 5 mm bore slips over the 5-6 mm glass tubes held in stoppers, and over other small diameter fittings used in laboratory set-ups.
Can the tubing be used on a vacuum line?
No. It is intended for general laboratory use and is too flexible for vacuum applications, where the wall would be drawn in and close the bore.
What are the tubing dimensions?
Inside diameter 5 mm (3/16 inch), outside diameter 8 mm (5/16 inch) and wall thickness 1.8 mm (1/16 inch), supplied in a 3 meter (10 foot) coil.
What temperature can it take?
The tubing has a melting point of 230 °F, so it is kept away from hot plates, flames and other hot surfaces in use.
How is Rubber Tubing ordered?
Order through the Add To Cart enquiry button on this page or the contact page, giving the number of coils and the place of delivery.
OEM Manufacturer
The Rubber Tubing is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
