Shaking Machine Wagners

Product Code : EL-LEAA-11019

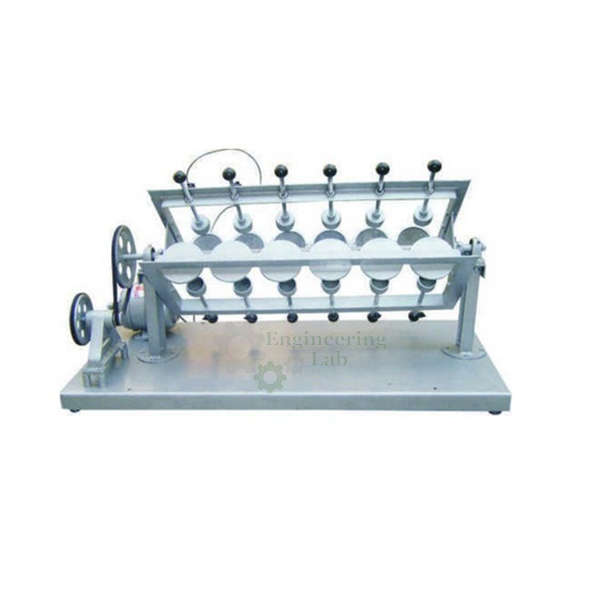

Shaking Machine Wagners (code EL-LEAA-11019) is a motor-driven shaker whose frame turns on a spindle to shake bottles or spindle flasks of ½ and 1 litre. Power comes from a 1/4 HP single phase motor at 60 to 70 RPM, the frame holds 6 or 12 bottles in 2 rows, and the housing is painted mild steel or CRC angle, with the spindle carried on bearings on a heavy metal upright base plate.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Shaking Machine Wagners Used For?

Slow, steady shaking of a sample with a liquid in a closed bottle is used for extractions and for mixing soil or other samples with a solution for a set time. The bottles are fixed in the shaking frame, and the motor turns the frame on its spindle through the pulley at 60 to 70 RPM, so that the contents of each bottle are tumbled and mixed with the liquid for as long as the procedure requires. Both ½ litre and 1 litre bottles can be used, with 6 or 12 bottles arranged in 2 rows, and the machine is rated for continuous duty.

What to Specify When Ordering

• Quantity — the number of machines required.
• Bottle capacity — 6 or 12 bottles in 2 rows.
• Bottle size — ½ litre or 1 litre bottles or spindle flasks.

Frequently Asked Questions

How many bottles can be shaken at once?
The machine accommodates 6 bottles in 2 rows or 12 bottles in 2 rows, taking bottles or spindle flasks of ½ and 1 litre.

At what speed does it run?
The 1/4 HP single phase motor runs at 60 to 70 RPM and drives the shaking frame through a pulley on its spindle.

How is the frame supported?
The spindle carrying the shaking frame is supported on bearings mounted on a heavy metal upright base plate.

What is the housing made of?
The housing is mild steel or CRC angle with painted sheet, and the machine runs continuously from a 50 Hz single phase mains line at 220/230 V.

How can this shaking machine be ordered?
An enquiry can be raised with the Add To Cart button on this page, or by sending the quantity and the delivery location through the contact page.

OEM Manufacturer

The Shaking Machine Wagners is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
