Maximum & Minimum Thermometers
Product Code : EL-LEAA-10534

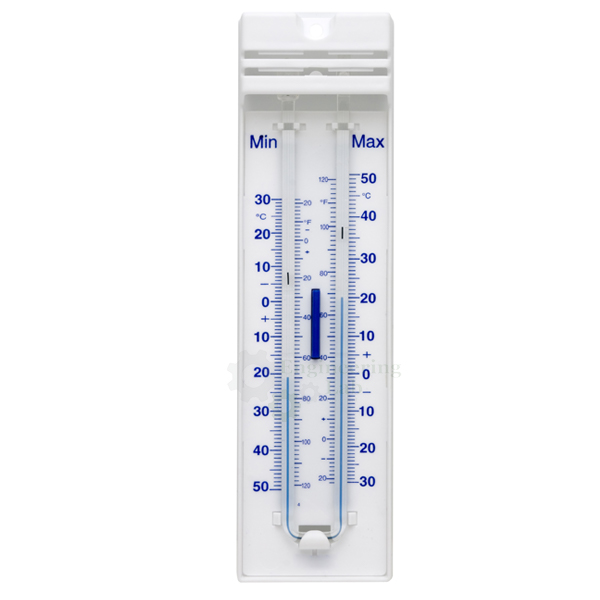

Maximum & Minimum Thermometers (code EL-LEAA-10534) are U-tube thermometers that show the current temperature along with the maximum and minimum recorded, read from small markers in each arm of the U tube. Each has a Fahrenheit scale on the inside of the U and a Celsius scale on the outside, and the range available is -30 °C to +50 °C.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | U-tube maximum-minimum thermometer |
| Scales | Fahrenheit on the inside of the U, Celsius on the outside |
| Range available | -30 °C to +50 °C |
| Readings | Current, maximum and minimum temperature |
| Markers | Small marker in each arm of the U tube; maximum and minimum read from the base of the markers |
| Product code | EL-LEAA-10534 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Maximum & Minimum Thermometers Used For?
A maximum and minimum thermometer records the extremes of temperature over a period, such as overnight or across a working day, without anyone having to watch it. As the temperature rises and falls, the liquid in the U tube pushes a small marker along each arm and leaves it at the furthest point reached; the maximum and the minimum are then read from the base of the two markers, while the liquid column shows the present temperature. After reading, the markers are reset to the liquid ends to begin a new period. It is used in stores, curing rooms, greenhouses and weather stations.
What to Specify When Ordering
- Quantity — the number of maximum and minimum thermometers required.
Frequently Asked Questions
How are the maximum and minimum readings taken?
Each arm of the U tube holds a small marker that is pushed along as the temperature changes. The maximum and minimum are read from the base of these markers.
Which temperature scales are marked?
Both are marked: the Fahrenheit scale is on the inside of the U and the Celsius scale on the outside, so either unit can be read.
What range is offered?
The range available is -30 °C to +50 °C, which spans frost conditions as well as hot summer days in most climates.
How is the thermometer reset?
After the readings are noted, the markers are brought back to rest on the ends of the liquid columns, so that the next maximum and minimum start from the present temperature.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Maximum & Minimum Thermometers at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its general laboratory equipment and accessories such as ovens, baths, balances and measuring tools go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Room Thermometer — thermometer for logging laboratory and store room air temperature over a -30 to +60 °C range.
- Laboratory Thermometers — general purpose partial immersion glass thermometer with blue organic liquid fill.
- Dial Thermometer — bi-metal needle-and-scale temperature indicator with ranges between -200 °C and 650 °C.
- Daily Rain Gauge — copper rainfall collector with 5 inch funnel and plastic cylinder graduated 0 to 10 mm.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of maximum and minimum thermometers wanted and the delivery location through the contact page; the Add To Cart button on this page also adds the Maximum & Minimum Thermometers to an enquiry.
