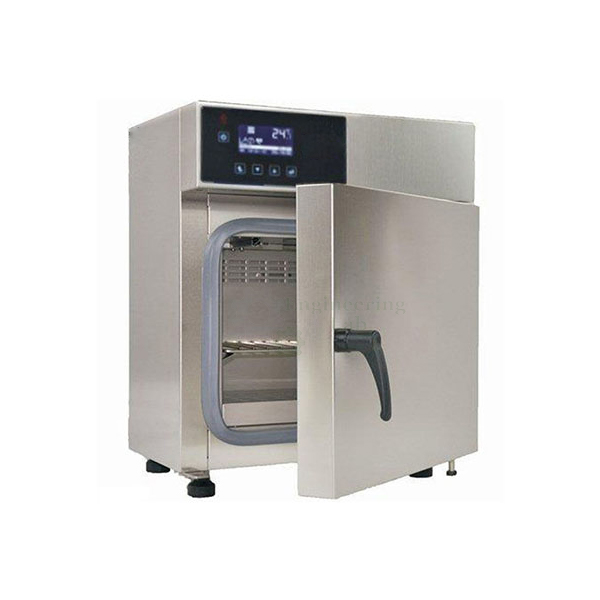

Laboratory Incubator
Product Code : EL-LEAA-10529
Laboratory Incubator (code EL-LEAA-10529) is a heated cabinet that holds samples at a controlled temperature for growing work in medical, agriculture and research laboratories of hospitals and bio-tech labs, on a 230 V A.C., 50 Hz supply. It is double walled, with a stove enamel or powder coated M.S. outer body, an aluminium or stainless steel chamber with 60-75 mm glass wool insulation and a glass window door, and its resistance wire heaters are controlled by a hydraulic bi-metallic capillary thermostat.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Growing applications in medical, agriculture and research laboratories of hospitals and bio-tech labs |
| Power supply | 230 V A.C., 50 Hz |
| Construction | |
| Walls | Double walled |
| Outer body | M.S., stove enamel or powder coated |
| Inner chamber | Aluminium or stainless steel |
| Insulation | 60-75 mm glass wool |
| Door | Glass window for observing samples without disturbing them; heavy chrome plated hinge |
| Thermometer | L shaped prismatic glass thermometer at the front of the cabinet |
| Temperature control | Hydraulic type bi-metallic capillary thermostat |
| Ventilation | Adjustable air ventilators on both sides |
| Tray | Adjustable steel, aluminium or wire mesh tray |
| Heating | |
| Heating elements | Resistance wire, fitted and wound along all sides and the bottom |
| Indicators and wiring | 2 pilot lamps, cord and plug pin |
| Options | |
| Air circulation | Can be fitted at extra cost |
| Digital controller | Digital temperature controller/indicator with air circulation system, at extra cost |
| Alarm | Alarm system fitted against order |
| Deluxe model | With thermostat and heavy gauge inside and outside chamber |
| Supply | |
| Product code | EL-LEAA-10529 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Laboratory Incubator Used For?
Incubators keep cultures, seeds, samples or biological test material at a steady warm temperature so that growth or reactions take place under the same conditions each time, as in microbiology, seed germination and other biological work. The samples are placed on the adjustable tray, the thermostat is set and the cabinet is closed; the temperature is read on the L shaped thermometer at the front, and the samples can be checked through the door window without opening it. The heaters along the sides and bottom warm the chamber, and the ventilators on both sides are opened or closed to adjust air exchange.
What to Specify When Ordering
- Quantity — the number of incubators required.
- Inner chamber and tray — an aluminium or stainless steel chamber, and a steel, aluminium or wire mesh tray.
- Options — air circulation, a digital temperature controller/indicator with air circulation, an alarm system, or the deluxe model with heavy gauge chamber.
Frequently Asked Questions
Can samples be checked without opening the door?
Yes. The door has a glass window, so samples can be observed without disturbing them, and the temperature is read on the L shaped prismatic glass thermometer at the front.
What controls the incubator temperature?
A hydraulic type bi-metallic capillary thermostat controls the heaters, which are resistance wire elements wound along all sides and the bottom. For an extra cost, air circulation can be added together with a digital controller/indicator.
What insulation and chamber materials are used?
The chamber is aluminium or stainless steel inside an M.S. outer body, with 60-75 mm of glass wool insulation between the double walls.
Which optional extras are offered?
Options are air circulation, a digital temperature controller/indicator with air circulation, an alarm system fitted against order, and a deluxe model with thermostat and heavy gauge inside and outside chamber.
Which laboratories use this incubator?
It is built for growing work in medical, agriculture and research laboratories, including those of hospitals and bio-tech labs.
What should an export enquiry include?
Quantity and options come first, followed by the destination country and the port or city. The buyer then gives the delivery terms, such as FOB or CIF, any special packing and the reference number of the tender when the order is part of one.
OEM Manufacturer
Buyers of the Laboratory Incubator deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Precision Laboratory Incubator — ambient to 70 °C PID controlled laboratory incubator with 0.1 °C setting and internal socket.
- Orbital Shaking Incubators — refrigerated orbital shaker incubator, 20 to 250 RPM, ambient to 60 °C, with interchangeable flask clamps.
- Hot Air Oven and Incubator — two door hot air oven and incubator in one body, oven to 250 °C, stainless steel interior.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of incubators, the chamber and tray material and any options and your delivery location through the contact page, or add the Laboratory Incubator to the enquiry cart from this page.
