Willy Mill Arthur H Thomas Type

Product Code : EL-LEAA-11004

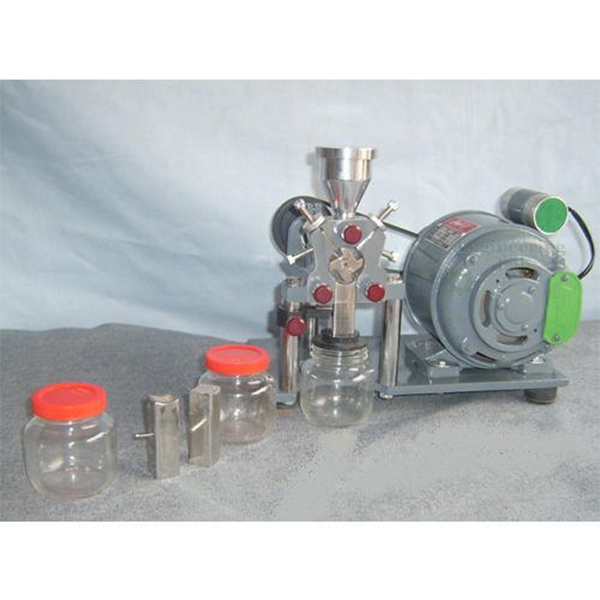

Willy Mill Arthur H Thomas Type (code EL-LEAA-11004) is a cutting mill used to prepare materials such as animal hair, organic drugs, leather, tobacco and wheat for laboratory analysis without loss of moisture due to heating. It cuts with 2 stationary blades and a 4-edge rotor in a cast steel chamber, is driven by a 1/4 HP motor, and comes with stainless steel sieves of 20, 40 and 60 mesh and a plastic receiver.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Willy Mill Arthur H Thomas Type Used For?

Many analyses need a small, evenly ground portion that represents the whole sample. The material is fed through the hopper, and the rotor's 4 cutting edges shear it against the 2 stationary blades until the particles are small enough to pass the chosen sieve, after which they fall into the powder jar at the base. Cutting, rather than crushing, keeps heating low, so the sample does not lose moisture while it is ground. The 20, 40 and 60 mesh sieves let the operator choose how fine the ground material should be.

What to Specify When Ordering

• Quantity — the number of mills required.

Frequently Asked Questions

Which materials is the mill recommended for?
It is recommended for animal hair, organic drugs, leather, tobacco, wheat and other material that has to be ground before laboratory analysis.

How does the mill cut the sample?
A rotor with 4 cutting edges turns against 2 stationary blades inside a cast steel chamber, cutting the material until it passes the fitted sieve.

Which sieves are supplied?
Stainless steel sieves of 20, 40 and 60 mesh are supplied, together with a plastic receiver, so the fineness of the ground material can be chosen.

Why does the mill avoid heating the sample?
Heat produced while grinding can drive off moisture and change the sample, so the mill is designed to prepare material for analysis without loss of moisture due to heating.

What motor drives the mill?
It is driven by a 1/4 HP motor on a single phase 220/230 V AC, 50 Hz supply and is rated for continuous duty.

Where does the ground material collect?
Ground material falls into a mild steel powder jar placed at the lower end of the mill, and the sample is introduced through a hopper with a cover.

OEM Manufacturer

The Willy Mill Arthur H Thomas Type is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
