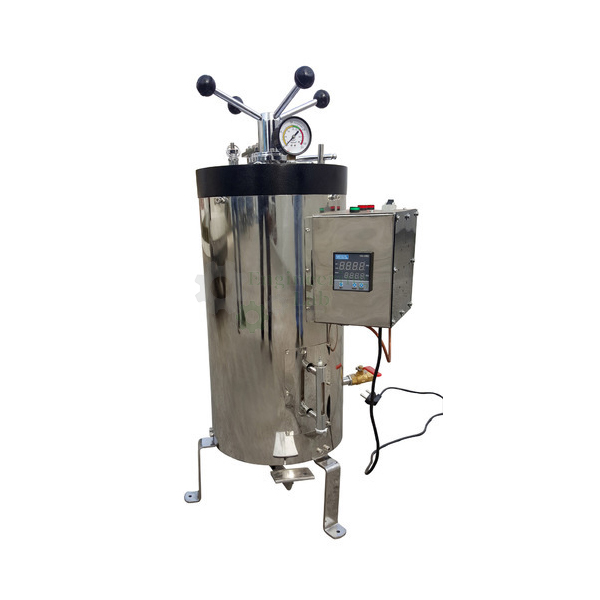

Laboratory Vertical Autoclave
Product Code : EL-LEAA-11021
Laboratory Vertical Autoclave (code EL-LEAA-11021) is an upright steam sterilizer used to sterilize laboratory items with steam under pressure. It has an adjustable pressure range of 5 PSI to 20 PSI, radial locking on the lid, glass wool insulation, an automatic water cut-off with alarm and a pressure control switch, a 0 to 60 minute timer or a 0 to 999 min/hrs digital timer, a paddle lifting device and a stainless steel cylindrical basket.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Outer chamber | Mild steel, degreased, powder coated and painted |
| All-stainless body | Outer body in stainless steel 304 grade with thick stainless steel lined lid |
| Lid | Stainless steel lined, for double protection |
| Insulation | Glass wool, keeps the surface temperature normal and avoids heat or steam loss |
| Locking | Radial locking for minimum steam loss; painted mild steel, chrome plated, with ring |
| Pressure range | Adjustable, 5 PSI to 20 PSI |
| Water cut-off | Automatic, with alarm |
| Pressure control | Pressure control switch |
| Timer | 0 to 60 minutes |
| Digital timer | Digital timer or digital indicator, 0 to 999 min/hrs |
| Lifting | Paddle lifting device |
| Supplied with | Stainless steel cylindrical basket |
| Product code | EL-LEAA-11021 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Laboratory Vertical Autoclave Used For?
Steam under pressure reaches a temperature above the normal boiling point of water, and moist heat at that temperature kills bacteria, including their spores, far more quickly than dry heat. Culture media, glassware, instruments and waste are loaded into the stainless steel basket, water is added to the chamber, the lid is closed with the radial locking, and the pressure and time are set. The pressure control switch holds the chosen pressure, the timer ends the cycle, and the automatic water cut-off with alarm stops the heating if the water runs low. The paddle lifting device lifts the basket out once the pressure has fallen.
What to Specify When Ordering
- Quantity — the number of autoclaves required.
- Body — powder coated mild steel outer chamber or all stainless steel 304 grade outer body.
- Timer — the 0 to 60 minute timer or the 0 to 999 min/hrs digital timer or indicator.
Frequently Asked Questions
What pressure range can be set?
The working pressure is adjustable from 5 PSI to 20 PSI and is held by a pressure control switch during the sterilizing cycle.
What happens if the water level falls too low?
An automatic water cut-off device with an alarm is fitted, which cuts off the heating and warns the operator when the water runs low.
How is the lid sealed?
The lid closes with radial locking, made of painted mild steel with chrome plating and a ring, which is designed to keep steam loss to a minimum.
What timers are offered?
A timer for 0 to 60 minutes is provided, along with a digital timer or digital indicator for 0 to 999 min/hrs.
How is the load put in and taken out?
Items go in the stainless steel cylindrical basket supplied with the autoclave, and a paddle lifting device is provided for lifting the basket.
Why is steam used for sterilization?
Moist heat transfers heat to the load quickly and kills microorganisms, including resistant spores, at lower temperatures and in shorter times than dry heat.
OEM Manufacturer
Buyers of the Laboratory Vertical Autoclave deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Hot Air Oven and Incubator — two door hot air oven and incubator in one body, oven to 250 °C, stainless steel interior.
- Mechanical Convection Hot Air Oven — blower-circulated drying and sterilizing oven, 50 to 250 °C, with PID control and stainless steel interior.
- Water Still — wall-mounted 304 stainless steel still for pyrogen free distilled water with removable condenser.
- Precision Laboratory Incubator — ambient to 70 °C PID controlled laboratory incubator with 0.1 °C setting and internal socket.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of autoclaves, the body material and the timer type required and your delivery location through the contact page, or add the Laboratory Vertical Autoclave to the enquiry cart from this page.
