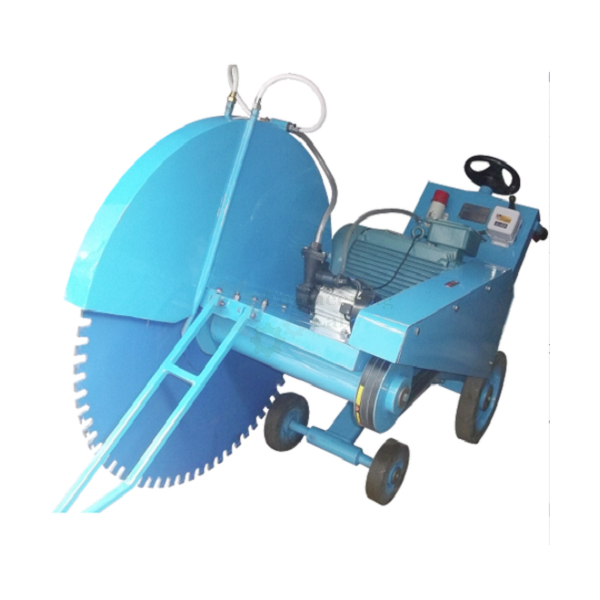

Groove Cutter Machine

Product Code : EL-RTLE-10957

Groove Cutter Machine (code EL-RTLE-10957) is an electric cutting machine used in the rock testing laboratory to cut grooves up to 300 mm deep and 6 mm wide. Its 900 mm/36 inches diamond blade is driven by a 20 HP electric motor, it needs a minimum water supply of 18 Ltr/Min, and it weighs approximately 390 kg, with an electrical panel board and a wire lead with plug socket.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Groove Cutter Machine Used For?

The machine cuts narrow grooves, 6 mm wide and up to 300 mm deep, with its 900 mm diamond blade, for rock testing work in which a thin, straight-sided slot has to be made in the material. Before cutting, it is connected to the power supply through the wire lead and plug socket, with the electrical panel board serving the 20 HP motor, and a water connection giving at least 18 Ltr/Min is made at the place of use; the water cools the diamond blade and carries away the cuttings. At about 390 kg, the machine is set in position before the cut is started.

What to Specify When Ordering

• Quantity — the number of machines required.

Frequently Asked Questions

What size of groove can the Groove Cutter Machine cut?
It cuts grooves with a maximum depth of 300 mm and a width of 6 mm, using a 900 mm/36 inches diamond blade.

What motor drives the blade?
The blade is driven by an electric prime motor with a power rating of 20 HP, connected through the electrical panel board supplied with the machine.

What water supply is needed?
A minimum water supply of 18 Ltr/Min is required, so a water connection must be available at the place where the machine is used.

How is the machine connected to power?
It comes with an electrical panel board and a wire lead with plug socket for connection to the electrical supply at the site.

How heavy is the machine?
The machine weighs approximately 390 kg, which should be allowed for when planning handling and transport to the place of use.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Groove Cutter Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its rock testing equipment for specimen preparation, strength and durability tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
