Asphalt & Concrete Floor Saw

Product Code : EL-RTLE-10500

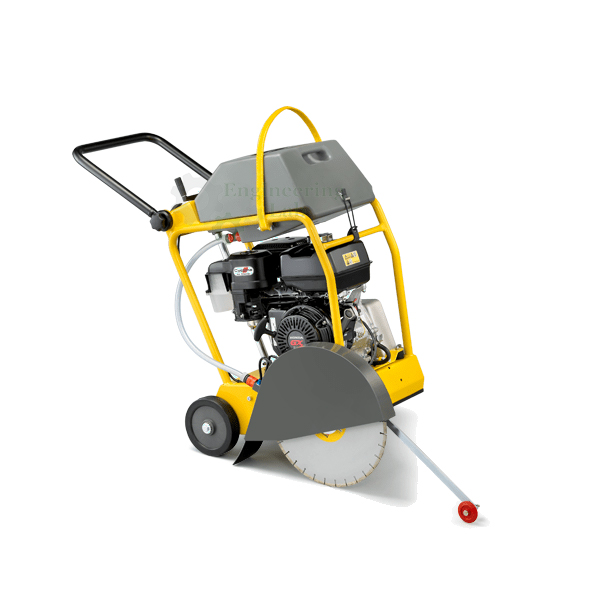

Asphalt & Concrete Floor Saw (code EL-RTLE-10500) is a trolley-mounted floor saw for cutting asphalt and concrete, driven either by an electrical motor or by an engine. It can be supplied with a diamond blade from 350 to 500 mm maximum as required, and the trolley carries a water tank for cooling, two wheels for moving the machine, a safety guard over the blade and depth control arrangements.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Asphalt & Concrete Floor Saw Used For?

A floor saw cuts straight down into the surface of a pavement or slab, and in testing work it is used to cut out blocks or beams of asphalt and concrete so that they can be taken to the laboratory and prepared as specimens. The operator wheels the saw to the area, sets the depth of cut, starts the motor or engine and pushes the saw along the line of the cut; water from the tank cools the diamond blade, and the guard covers the blade while it runs. The standards listed for the floor saw are EN 12390-3 and ASTM C42.

What to Specify When Ordering

• Quantity — the number of floor saws required.
• Drive — electrical motor drive or engine drive.
• Blade size — the diamond blade diameter required, from 350 to 500 mm.

Frequently Asked Questions

What drive options are offered for the Asphalt & Concrete Floor Saw?
The saw can be driven by an electrical motor or by an engine, so the buyer chooses the drive that suits the site where it will work.

What blade sizes can be fitted?
It can be supplied with a diamond blade from 350 mm up to a maximum of 500 mm, chosen to suit the requirement of the job.

How is the blade cooled?
Cooling comes from a water tank on the trolley that carries the engine, supplying water to the diamond blade while it cuts.

What safety and control features does it have?
A safety guard is fitted over the diamond blade, and arrangements are provided to control the depth of cut. Two wheels let the machine be moved.

Which standards are listed for the saw?
The standards listed for this saw are EN 12390-3 and ASTM C42; the latter covers obtaining and testing drilled cores and sawed beams of concrete.

OEM Manufacturer

The Asphalt & Concrete Floor Saw is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests rock testing equipment for specimen preparation, strength and durability tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.

Related Rock Testing Equipment

• Rock/Concrete Cutting Machine — 230 V masonry table saw with 350 mm blade, 650 mm cutting length and water cooling.
• Slake Durability Test Apparatus — motorised slake durability tester turning two or four 2.00 mm mesh drums through water tanks.
• Point Load Index Tester — portable 100 kN hand-operated point load tester for rock cores and irregular lumps, with two gauges.

See the full Rock Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other rock testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of floor saws, the drive type and the diamond blade size required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
