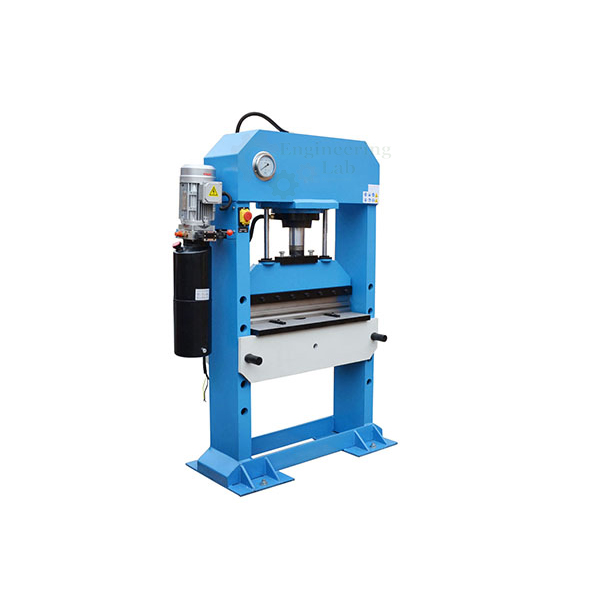

Hydraulic Press Machine

Product Code : EL-WTMAA-10585

Hydraulic Press Machine (code EL-WTMAA-10585) is a hydraulically powered press for workshop pressing work, built with a rigid structure and driven by double acting hydraulic cylinders from a dedicated power pack unit. The steel cylinders have bores honed to a mirror finish, chevron seals with bronze strip and a surface ground, hardened EN-8 ram, and the power pack has a gear pump, electric motor, hand lever direction control valve, pressure gauge and return line filter.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Hydraulic Press Machine Used For?

A hydraulic press uses oil pressure acting on a piston to give a large, controllable force for pressing, straightening, bending, assembling or forming work. In this press the gear pump in the power pack draws oil from the tank through the suction strainer and sends it to the double acting cylinder; the operator moves the hand lever of the direction control valve to drive the ram down onto the work or back up, and watches the pressure on the gauge. Oil returns to the tank through the return line filter. The tank is supplied empty and is filled with oil before use.

What to Specify When Ordering

• Quantity — the number of hydraulic presses required.

Frequently Asked Questions

What drives the press?
Double acting hydraulic cylinders power the press, fed with oil by a power pack unit that has a gear pump, a flexible coupling and an electric motor.

How are the cylinders made?
The cylinders are made of steel, their bores are honed to a mirror finish to protect the piston seals, and chevron seals with bronze strip are used to prevent leaks.

What is the ram made of?
The ram is made from EN-8 material and is surface ground and hardened, giving a hard, smooth surface for the seals and resistance to corrosion.

What is included in the power pack unit?
It has an oil breather, oil level indicator, suction strainer, gear pump, flexible coupling, electric motor, hand lever direction control valve, pressure gauge, return line filter, oil tank and internal and external pipe lines.

Is hydraulic oil supplied with the press?
No. The oil tank is supplied without oil, so the tank is filled with hydraulic oil at site before the press is started.

How is the ram direction controlled?
A hand lever operated direction control valve in the power pack sends oil to one side or the other of the double acting cylinder, moving the ram down or back up.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Hydraulic Press Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its workshop machines, tools and accessories for engineering training workshops go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
