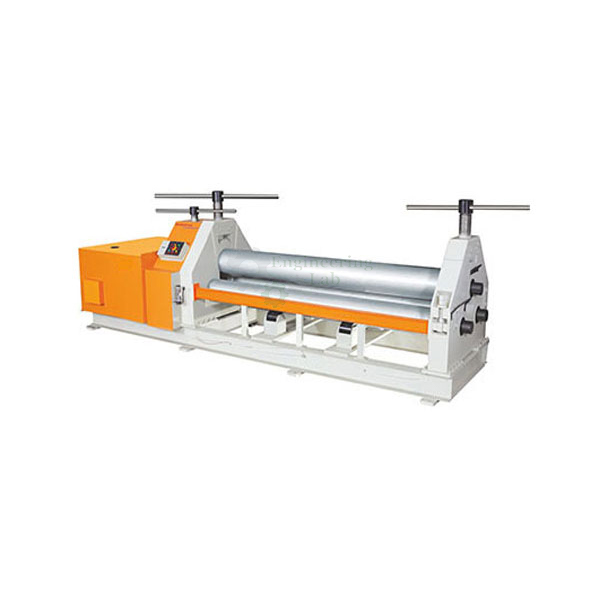

Plate Rolling Machine
Product Code : EL-WTMAA-10459
Plate Rolling Machine (code EL-WTMAA-10459) is a 3 roll pyramid type machine for bending plates, with a double pre-pressing arrangement. The top roll is fixed while the base rolls move up and down under hydraulic power, the two base rolls are power driven through a planetary gear box by an electric motor, and the machine has overload prevention and a built-in cone bending connection.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Design | 3 roll pyramid type with double pre-pressing arrangement |
| Top roll | Fixed |
| Base rolls | Move up and down, hydraulically powered |
| Roll material | Combination steel |
| Drive | Two base rolls power driven via a planetary gear box with an electric motor |
| Drop end support | Pressure-driven barrels |
| Overload | Overload prevention |
| Cone bending | Built-in cone bending connection |
| Systems | Hydraulic and electrical |
| Product code | EL-WTMAA-10459 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Plate Rolling Machine Used For?
Plate rolling bends flat plate into cylinders, cones and arcs by passing it repeatedly between rolls set in a triangle. On this pyramid type machine the top roll stays fixed and the two power-driven base rolls are raised step by step, so each pass curves the plate further. The double pre-pressing arrangement bends the plate edges before rolling, which reduces the flat portion that would otherwise be left at each end, and the cone bending connection is used when tapered shells are needed. The drop end lets a closed cylinder be slid off the top roll.
What to Specify When Ordering
- Quantity — the number of plate rolling machines required.
Frequently Asked Questions
How are the rolls arranged?
It is a 3 roll pyramid type machine: the top roll is fixed, and the base rolls move up and down under hydraulic power to set the curvature of the bend.
How are the rolls driven?
The two base rolls are power driven by an electric motor through a planetary gear box, and these driven rolls carry the plate through each pass.
Can the machine bend cones?
Yes. A cone bending connection is built in, so tapered shells can be rolled as well as plain cylinders and curved sections.
What is the double pre-pressing arrangement for?
It pre-bends both end edges of the plate before rolling, reducing the flat lengths that a three roll machine otherwise leaves at each end of a rolled shell.
What protection is fitted?
The machine is fitted with overload prevention, and the drop end is held by pressure-driven barrels.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Plate Rolling Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its workshop machines, tools and accessories for engineering training workshops go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Workshop Tools and Machines
- Hydraulic Press Machine — rigid hydraulic press with double acting cylinders, hardened EN-8 ram and hand lever power pack.
- Power Press Machine — all steel frame mechanical power press with adjustable stroke, pin clutch and alloy steel crank shaft.
- Hydraulic Guillotine Shearing Machine — hydraulic guillotine sheet shear with variable rake angle, box type structure and overload interlocks.
See the full Workshop Tools, Machines and Accessories range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other workshop tools, machines and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of plate rolling machines required and the delivery location through the contact page; the Add To Cart button on this page also adds the Plate Rolling Machine to an enquiry.
