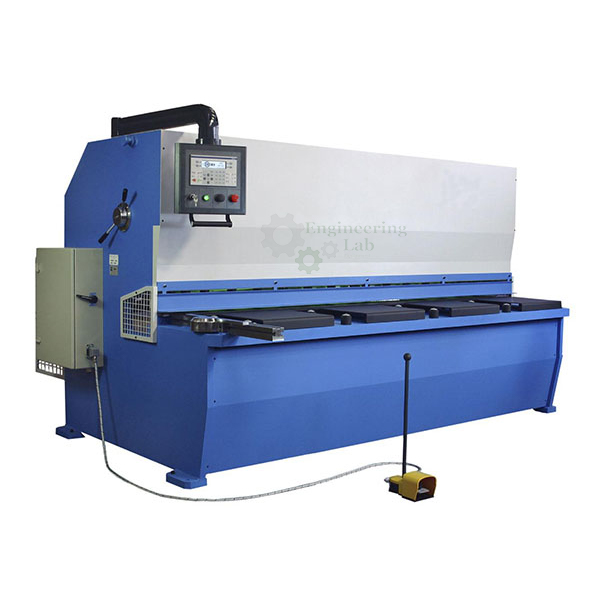

Hydraulic Guillotine Shearing Machine

Product Code : EL-WTMAA-10457

Hydraulic Guillotine Shearing Machine (code EL-WTMAA-10457) is a guillotine shear for cutting sheets, worked hydraulically and built with a variable rake angle design. Its rigid box type structure has inclined members for the ram and table, the welded structure is ultrasonically tested, hydraulic and electrical safety interlocks guard against overloading, and NC up-gradation is available.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Hydraulic Guillotine Shearing Machine Used For?

A guillotine shear cuts a sheet along a straight line as the upper blade on the ram travels down past the lower blade on the table. The rake angle is the slope of the upper blade along its length: a small angle gives a flat, twist-free cut in thin sheet, while a larger angle reduces the force needed so that a higher cutting capacity is reached. The operator sets the rake angle hydraulically to suit the sheet, positions it and makes the cut, with the hydraulic and electrical interlocks protecting the machine against overloading.

What to Specify When Ordering

• Quantity — the number of shearing machines required.
• NC up-gradation — whether the machine is to be supplied with the NC up-gradation.

Frequently Asked Questions

What does the variable rake angle do?
Lower rake angles give twist-free cuts in thin sheets, and higher rake angles give a higher cutting capacity; the angle is varied hydraulically to suit the work.

How is the frame built?
It has a rigid box type structure with inclined members for the ram and table, and its welded structure is ultrasonically tested.

What protects the machine from overloading?
Both hydraulic and electrical safety interlocks are fitted so that the machine is protected against overloading while it cuts.

Can the shear be upgraded to NC?
Yes. NC up-gradation is available for the hydraulically operated guillotine shear, adding numerical control to the cutting operation.

How does a guillotine shear cut?
The upper blade, carried on the ram, moves down past the lower blade on the table and shears the sheet along a straight line without producing chips.

OEM Manufacturer

Buyers of the Hydraulic Guillotine Shearing Machine deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests workshop machines, tools and accessories for engineering training workshops, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Workshop Tools and Machines

• Plate Rolling Machine — 3 roll pyramid plate bending machine with double pre-pressing, planetary gear drive and cone bending.
• Hydraulic Press Machine — rigid hydraulic press with double acting cylinders, hardened EN-8 ram and hand lever power pack.
• Power Press Machine — all steel frame mechanical power press with adjustable stroke, pin clutch and alloy steel crank shaft.

See the full Workshop Tools, Machines and Accessories range or all Mechanical Engineering Lab Equipment.

Request a Quote

For this and other workshop tools, machines and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of shearing machines and whether NC up-gradation is required and your delivery location through the contact page, or add the Hydraulic Guillotine Shearing Machine to the enquiry cart from this page.
