Re-Sharpening Machine
Product Code : EL-WTMAA-10584

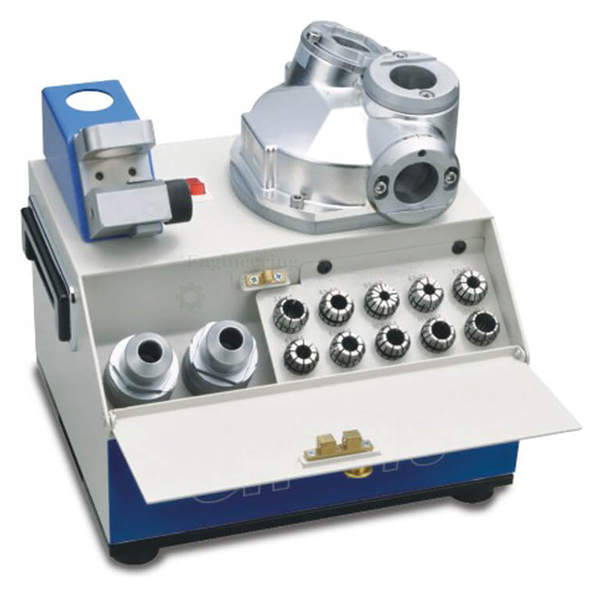

Re-Sharpening Machine (code EL-WTMAA-10584) is a drill grinder used to regrind worn drill bits, holding each drill in a collet holder and running it against a grinding wheel chosen for the drill material. A CBN grinding wheel is standard and suits HSS drills, an SD wheel suits carbide drills, and a left scale annulus is set to match the diameter of the drill being sharpened.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Resharpening drills |
| Standard grinding wheel | CBN, suitable for HSS drills |
| Wheel for carbide drills | SD grinding wheel |
| Drill holding | Suitable collet in a collet holder |
| Collet insertion | At a 45-degree angle into the holder |
| Diameter setting | Left scale annulus adjusted to the drill diameter |
| Operating procedure | |
| Wheel selection | Check the drill material and choose a suitable grinding wheel |
| Scale zeroing | Set the left scale annulus to the 0 position: turn it clockwise to the end, then counterclockwise back to 0 |
| Collet fitting | Choose a suitable collet and insert it into the collet holder at a 45-degree angle |
| Drill setting | Set the drill in the collet holder without tightening, leaving room to adjust it, and adjust the left scale to the drill diameter |
| Positioning | Insert the collet holder with the drill into the left hole until it fully touches and turn right to set it; insert the drill tip into the end and turn right to set it |
| Clamping | Tighten the drill in the collet holder to fix the grinding position, then take out the chuck |
| Supply | |
| Product code | EL-WTMAA-10584 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Re-Sharpening Machine Used For?
Drill bits dull at the cutting lips and point with use, and regrinding restores the point so the drill cuts cleanly again instead of being discarded. With this machine the operator first chooses the wheel to suit the drill: the standard CBN wheel for HSS drills or an SD wheel for carbide drills. The scale is zeroed, a matching collet is fitted to the collet holder at a 45-degree angle, the drill is set loosely and the scale adjusted to its diameter, and the holder is located in the machine before the drill is tightened in its grinding position.
What to Specify When Ordering
- Quantity — the number of re-sharpening machines required.
- Grinding wheel — the standard CBN wheel for HSS drills, or an SD wheel for carbide drills.
Frequently Asked Questions
Which grinding wheel should be used?
Choose the wheel by drill material: the standard CBN grinding wheel is suitable for HSS drills, and an SD wheel is suitable for carbide drills.
How is the drill held for grinding?
A suitable collet is inserted into the collet holder at a 45-degree angle, the drill is set in it loosely for adjustment, and it is tightened once the grinding position is fixed.
How is the machine set for a given drill size?
The left scale annulus is first returned to the 0 position and then adjusted to match the diameter of the drill being sharpened.
How is the scale zeroed?
Turn the left scale annulus clockwise to the end, then rotate it counterclockwise until it is back at the 0 position, before the collet and drill are set up.
Why regrind a drill instead of replacing it?
A blunt drill rubs instead of cutting, producing heat and poor holes; regrinding restores sharp cutting lips so that the same drill can go back into service.
OEM Manufacturer
The Re-Sharpening Machine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests workshop machines, tools and accessories for engineering training workshops for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
