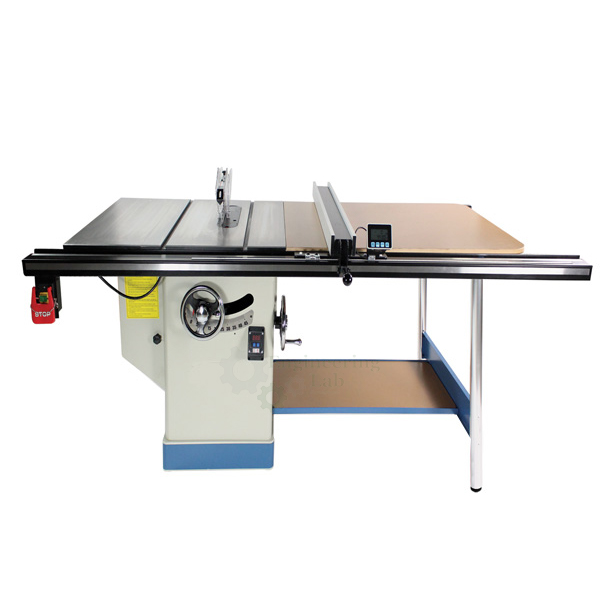

Wood Working Table Saw Motor Driven
Product Code : EL-WTMAA-10588
Wood Working Table Saw Motor Driven (code EL-WTMAA-10588) is a cabinet style table saw used for ripping, crosscutting and dado cuts in wood, driven by a 3 HP, 230 V single phase motor. It takes a 10 inch blade on a 5/8 inch arbor running at 4300 RPM, cuts up to 3 inch deep (2-1/8 inch at 45 degrees) and has a 29 × 20 inch cast iron table that extends to 29 × 42 inch with its wings.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Saw and cutting capacity | |
| Style | Cabinet |
| Blade diameter | 10 inch |
| Arbor diameter | 5/8 inch |
| Arbor speed | 4300 RPM |
| Maximum depth of cut | 3 inch |
| Depth of cut at 45° | 2-1/8 inch |
| Maximum rip left of blade | 13 inch |
| Maximum rip right of blade | 30 inch |
| Table in front of blade | 10 inch, at maximum depth of cut |
| Maximum dado diameter | 8 inch |
| Maximum dado width | 13/16 inch |
| Table | |
| Table type | Cast iron, precision ground, with front edge bevel |
| Table size (L × W) | 29 × 20 inch |
| Table size with extensions | 29 × 42 inch (L × W) |
| Extension wings | 11 inch left and right, cast iron, standard |
| Miter gauge | Deluxe type with adjustable positive stops and large soft grip handles |
| Motor and drive | |
| Motor power | 3 HP |
| Motor phase | Single phase (1 PH) |
| Motor voltage | 230 V |
| Motor current | 14.5 A |
| Prewired voltage | 230 V |
| Drive belt | Poly-V drive belt system |
| Switch | Rail-mounted magnetic switch with overload protection |
| Motor access | Hinged motor cover on cabinet for access to motor and belts |
| Trunnion | Left tilt, wide stance |
| Handwheels | Chrome plated, for trunnion and arbor movement |
| Safety and dust collection | |
| Riving knife | Quick release, reduces binding and kickback risk |
| Blade guard | Independent leaf safety guard, protecting the operator from the blade while cutting, including at 45° tilt |
| Arbor lock | Push button, for rapid blade change |
| Blade shroud | Shrouded blade for dust collection |
| Dust port | Built-in, 4 inch outside diameter |
| Dust collection airflow | Minimum 350 CFM required |
| Cabinet and finish | |
| Cabinet | Enclosed, with built-in sealed storage drawer |
| Finish | Powder coated paint |
| Supplied with | Arbor wrench |
| Supply | |
| Product code | EL-WTMAA-10588 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Wood Working Table Saw Motor Driven Used For?
A table saw cuts with a circular blade rising through the table: ripping runs along the grain, crosscutting goes across it with the miter gauge, and dado cuts form grooves and housings. The operator sets blade height with the handwheels, tilts the blade up to 45 degrees for bevels, feeds the board across the cast iron table and changes blades using the push button arbor lock. Rips of up to 30 inch right of the blade are possible, the riving knife and leaf guard stay in place during cutting, and a dust extractor of at least 350 CFM is connected to the 4 inch port.
What to Specify When Ordering
- Quantity — the number of table saws required.
Frequently Asked Questions
What blade and arbor does the saw use?
It takes a 10 inch diameter blade on a 5/8 inch arbor turning at 4300 RPM; a push button arbor lock allows rapid blade changes and an arbor wrench is supplied.
How deep and how wide can it cut?
Maximum depth of cut is 3 inch, or 2-1/8 inch with the blade at 45 degrees, and the rip capacity is 13 inch left and 30 inch right of the blade.
Can it cut dados?
Yes. Dado cuts up to 8 inch in diameter and 13/16 inch in width can be made, giving grooves and housings for joinery.
What electrical supply is needed?
The 3 HP motor is single phase, 230 V, draws 14.5 A and comes prewired for 230 V; it is switched through a rail-mounted magnetic switch with overload protection.
What dust collection does it need?
Connect a collector giving at least 350 CFM to the built-in dust port of 4 inch outside diameter; the shrouded blade helps direct the dust to the collection.
Which safety features are fitted?
A quick release riving knife reduces binding and kickback, and an independent leaf safety guard protects the operator from the blade while cutting, even with the blade tilted to 45 degrees.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Wood Working Table Saw Motor Driven at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its workshop machines, tools and accessories for engineering training workshops go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
