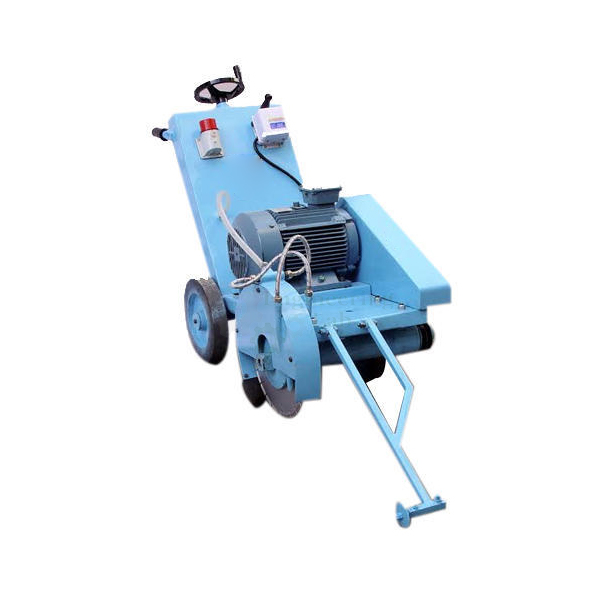

Asphalt Concrete Cutting Machine
Product Code : EL-BTLE-10955
Asphalt Concrete Cutting Machine (code EL-BTLE-10955) is an electric cutting machine used in the construction industry for cutting concrete and marble. It runs a No. 1 diamond blade of 16 × 7 mm, gives a 7 mm width of cut and needs a minimum water supply of 10 Lit/Min while cutting.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Cutting concrete and marble in the construction industry |
| Prime motor | Electric |
| Blade | No. 1 diamond blade, 16 × 7 mm |
| Width of cut | 7 mm (16") |
| Maximum depth | 1600 mm |
| Minimum water | 10 Lit/Min |
| Product code | EL-BTLE-10955 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Asphalt Concrete Cutting Machine Used For?
Diamond sawing is used to cut slabs, pavements and stone cleanly, whether to trim or open up a surface or to take out sections for inspection and testing. The blade is cooled with water during cutting, which stops the diamond segments from overheating and settles the dust, so a supply of at least 10 Lit/Min is connected before the electric motor is started. The operator then guides the machine along the marked line, with the No. 1 diamond blade cutting a 7 mm wide slot.
What to Specify When Ordering
- Quantity — the number of cutting machines required.
Frequently Asked Questions
What materials is the Asphalt Concrete Cutting Machine used on?
It is used in the construction industry for cutting concrete and marble, driven by an electric prime motor with a No. 1 diamond blade.
What blade does it use and how wide is the cut?
It takes a No. 1 diamond blade of 16 × 7 mm, and the width of cut it produces is 7 mm.
How much water does it need?
A minimum water supply of 10 Lit/Min is required to cool the diamond blade and keep down dust while the machine is cutting.
What drives the blade?
The blade is driven by an electric prime motor, so the machine needs an electrical supply at the place of work as well as water.
OEM Manufacturer
Buyers of the Asphalt Concrete Cutting Machine deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests bitumen and asphalt testing equipment for binder tests, mix preparation and specimen testing, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
