Heating Jacket Mixer
Product Code : EL-BTLE-10430

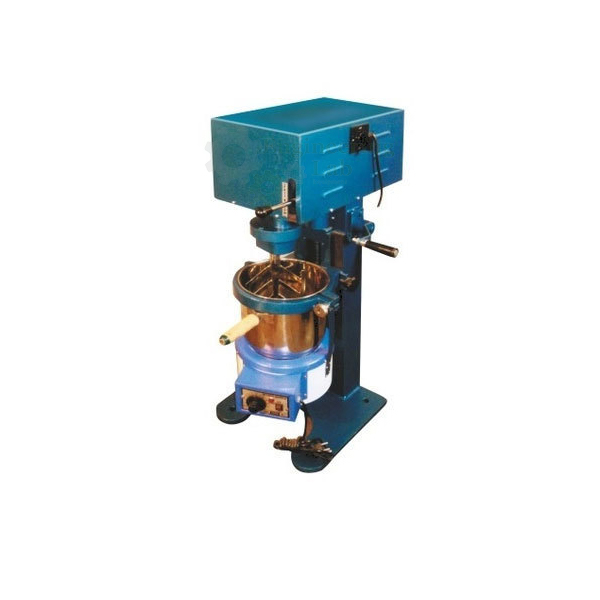

Heating Jacket Mixer (code EL-BTLE-10430) is a bench mounting, two-speed motorized mixer of 6 litre nominal capacity that works alongside an Iso Mantle to mix asphalt samples. Since a bituminous mix has to be prepared at its prescribed temperature, a thermostatically controlled heater can be added to the mixer; it runs on 230 V A.C. single phase and comes with a bowl, beater and whisk.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Mixing samples of asphalt, in conjunction with an Iso Mantle |
| Mounting | Bench mounting |
| Capacity | 6 litre nominal |
| Drive | Motorized, two speed |
| Power supply | 230 V A.C., single phase |
| Heating | Can be equipped with a thermostatically controlled heater, as the bituminous mix must be prepared at the prescribed temperature |
| Supplied with | Bowl of suitable capacity, beater and whisk |
| Standards | EN 12697-35 |
| Product code | EL-BTLE-10430 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Heating Jacket Mixer Used For?
Laboratory mixing brings aggregate and binder together in the proportions of a trial mix so that specimens can be compacted and tested, and the batch has to stay at its prescribed temperature for the binder to coat the aggregate properly. The heated aggregate and bitumen are weighed into the bowl, the bowl is kept hot by the Iso Mantle or the thermostatic heater, and the beater works the batch at one of the two speeds until every particle is coated. The mixed batch then goes on to compaction while still at temperature. The standard listed for it is EN 12697-35.
What to Specify When Ordering
- Quantity — the number of mixers required.
- Heater — whether the mixer is to be equipped with the thermostatically controlled heater.
Frequently Asked Questions
What is the capacity of the Heating Jacket Mixer?
It is a bench mounting mixer with a nominal capacity of 6 litres, supplied with a bowl of suitable capacity for the asphalt samples to be mixed.
How is the mix kept hot while mixing?
The mixer works in conjunction with an Iso Mantle, and it can also be equipped with a thermostatically controlled heater so that the mix stays at its prescribed temperature.
How many speeds does it have?
It is motorized with two speeds, so the operator can select the slower or the faster setting for the batch in the bowl.
Which mixing tools come with it?
The mixer is supplied complete with a bowl of suitable capacity, a beater and a whisk for preparing asphalt samples.
Which mains supply and standard are given for the mixer?
The motor runs on 230 V A.C. single phase, and the standard listed for it is EN 12697-35, which concerns laboratory mixing of bituminous mixtures.
OEM Manufacturer
Buyers of the Heating Jacket Mixer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests bitumen and asphalt testing equipment for binder tests, mix preparation and specimen testing, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Bitumen and Asphalt Testing Equipment
- Mixer with Heating Jacket — two-speed bench mixer with heated 6 litre bowl, beater and whisk for asphalt samples.
- Automatic Compactor for Bituminous Mixes — motor-driven specimen compactor dropping a 4.5 kg weight through 457 mm, with preset blow counter.
- Rolling Thin Film Oven — oven with PID control ageing 8 rotating binder specimens from ambient to 200 °C for RTFO tests.
- Reflux Extractor 4000 Gms — glass-jar reflux apparatus with stainless steel cloth cones, condenser and hot plate for bitumen extraction.
See the full Bitumen/Asphalt Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other bitumen and asphalt testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of mixers and whether the thermostatic heater is to be fitted and your delivery location through the contact page, or add the Heating Jacket Mixer to the enquiry cart from this page.
