Fraass Breaking Point Apparatus

Product Code : EL-BTLE-10448

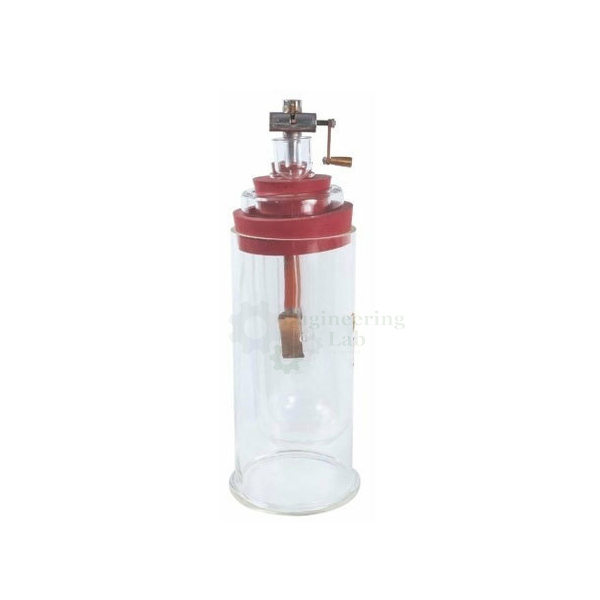

Fraass Breaking Point Apparatus (code EL-BTLE-10448) is a cooling and bending set for finding the breaking point of solid and semisolid bitumen, defined as the temperature at which a thin bitumen film on a metal plaque first shows cracks as it is cooled and flexed under specified conditions. The set comprises a stainless steel plaque, the cooling and bending apparatus, an IP 42C thermometer reading -38 °C to +30 °C, a plate and a stand.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Fraass Breaking Point Apparatus Used For?

Low-temperature brittleness matters for paving binders in cold climates and for roofing and sealing bitumens, which have to flex in winter without cracking. A thin film of the bitumen is spread on the stainless steel plaque, the plaque is fitted to the bending apparatus and cooled at a steady rate, and at intervals it is flexed and released; the thermometer is read at the moment the first crack appears in the film, giving the breaking point. The standard listed for it is EN 12593.

What to Specify When Ordering

• Quantity — the number of apparatus required.

Frequently Asked Questions

What does the Fraass Breaking Point Apparatus determine?
It finds the breaking point of solid and semisolid bitumen: the temperature at which the bitumen first becomes brittle, seen as cracks in a thin film flexed on a metal plaque as it cools.

What parts make up the apparatus?
It consists of a stainless steel plaque, the cooling and bending apparatus, an IP 42C thermometer, a plate and a stand on which the assembly is mounted.

What range does the thermometer cover?
The IP 42C thermometer reads from -38 °C to +30 °C, the span within which the breaking point of the bitumen film is observed.

Why is a breaking point test carried out?
It shows how a bitumen behaves at low temperature, which matters where pavements, roofing or seals must bend in cold weather without cracking.

Which standard describes the breaking point test?
The standard listed for it is EN 12593, which sets out the specified cooling and flexing conditions for the breaking point test.

OEM Manufacturer

Buyers of the Fraass Breaking Point Apparatus deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests bitumen and asphalt testing equipment for binder tests, mix preparation and specimen testing, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Bitumen and Asphalt Testing Equipment

• Standard Penetrometer — dial-type needle penetrometer on a levelling base, reading 1/10 mm, with 50 and 100 gms weights.
• Ring and Ball Apparatus — manual bitumen softening point set with sliding plate support, 600 ml beaker and 9.5 mm steel balls.
• Ductility Testing Apparatus — water-bath bitumen ductility machine stretching three specimens at 50 or 10 mm/min.
• Refrigerated Ductility Test System — refrigerated water-bath ductility tester holding 27 °C, with 0-100 cm scale and three briquette moulds.

See the full Bitumen/Asphalt Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other bitumen and asphalt testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of apparatus required and your delivery location through the contact page, or add the Fraass Breaking Point Apparatus to the enquiry cart from this page.
