Disc Type Wire Gauge
Product Code : EL-LEAA-10539

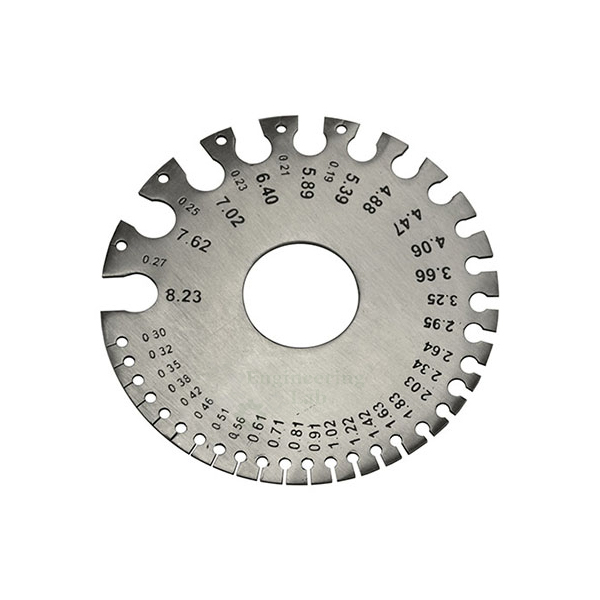

Disc Type Wire Gauge (code EL-LEAA-10539) is a disc-shaped gauge used to measure the thickness of metal plate or the diameter of a wire. It measures from 1 to 36 and is made of hardened and tempered steel, which resists wear during measurement.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Disc type |
| Use | Measuring thickness of metal plate or diameter of wire |
| Measuring range | 1 to 36 |
| Material | Hardened and tempered steel |
| Product code | EL-LEAA-10539 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Disc Type Wire Gauge Used For?
Wire and thin sheet are commonly specified by gauge number rather than in millimetres, so workshops, stores and laboratories need a quick way of finding the gauge of a sample. The disc has a series of slots around its edge, each marked with its gauge number; the wire or the edge of the plate is tried in the slots until it fits one closely without forcing, and that slot gives the size. This gauge covers sizes 1 to 36, and its hardened and tempered steel resists wear of the slot edges with repeated use.
What to Specify When Ordering
- Quantity — the number of wire gauges required.
Frequently Asked Questions
What can the wire gauge measure?
It measures the thickness of metal plate and the diameter of wire, giving the size as a gauge number from 1 to 36.
How is the gauge used?
The wire or plate edge is tried in the slots around the disc until it fits one snugly; the number marked beside that slot is the gauge size.
Why is it made of hardened and tempered steel?
Hardened and tempered steel resists wear of the slot edges, so the slots keep their size during repeated measurement.
OEM Manufacturer
The Disc Type Wire Gauge is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Dial Gauge — steel plunger indicator reading 0.01 mm over 10 mm on a 0-100 graduated dial.
- Digital Dial Gauge — microprocessor gauge with digital readout, zero button, data output port and SR44/LR44 battery.
- Digital Vernier Caliper — hardened stainless steel electronic caliper for outer, inner, depth and step readings with inch/metric switching.
- Measuring Tapes — set of 2 plastic flexible rulers in sky blue and black, each 10 × 4 × 9 cm.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of wire gauges needed and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
