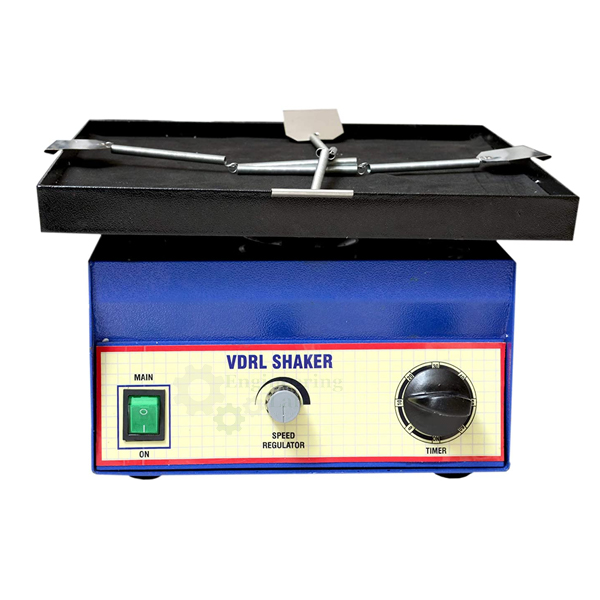

VDRL Rotator (Clinical)

Product Code : EL-LEAA-11027

VDRL Rotator (Clinical) (code EL-LEAA-11027) is a laboratory rotator used to keep slides in motion during VDRL testing. Its rubber-covered metal platform measures 13 × 13 in and takes cavity slides, and with spring holders or clamps it also holds blood bottles and flasks; the platform has a fixed oscillation of up to 180 RPM, the unit is rated for continuous duty and it runs on a 220/230 V single phase 50 Hz supply.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the VDRL Rotator (Clinical) Used For?

The VDRL test is a slide flocculation test used in screening for syphilis: patient serum is mixed with a prepared antigen on a slide, and the mixture must be kept in steady motion for a set time so that any flocculation can develop before the slide is read under a microscope. The technician places the cavity slides on the rubber-covered platform and switches on the rotator, which oscillates at up to 180 RPM. With spring holders or clamps fitted, the same platform can mix blood bottles and flasks, and the continuous duty rating allows it to run through a series of tests.

What to Specify When Ordering

• Quantity — the number of rotators required.
• Holders — whether spring holders or clamps are needed for blood bottles and flasks.

Frequently Asked Questions

What can be placed on the platform?
The 13 × 13 in rubber-covered metal platform takes cavity slides, and blood bottles and flasks can also be mounted on it with spring holders or clamps.

At what speed does the platform move?
The platform has a fixed oscillation of up to 180 RPM, which keeps the serum and antigen on the cavity slides moving while the test runs.

Can the rotator be left running for long periods?
It is rated for a continuous duty cycle, so it can be kept running through a series of VDRL slides or bottle and flask mixing jobs.

What is a VDRL test?
It is a slide flocculation test used in syphilis screening, in which serum is mixed with an antigen on a slide that is rotated before the result is read under a microscope.

What power supply does it use?
The rotator is powered from a single phase AC supply of 220/230 V at 50 Hz and is rated for continuous duty on that supply.

OEM Manufacturer

Buyers of the VDRL Rotator (Clinical) deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Laboratory Equipment and Accessories

• Rotary Shaker — flask shaker with 19 mm or 25 mm horizontal circular motion and 20 to 180 RPM speed.
• Vortex Shaker — tube and small flask vortex mixer with neoprene cup, variable speed and non-walking rubber base.
• Universal Water Bath Serological — rectangular stainless steel bath for serological work from ambient +5 to 99 °C with AC/DC gear motor.

See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of rotators and whether spring holders or clamps for bottles and flasks are needed and your delivery location through the contact page, or add the VDRL Rotator (Clinical) to the enquiry cart from this page.
