Humidifier

Product Code : EL-LEAA-11024

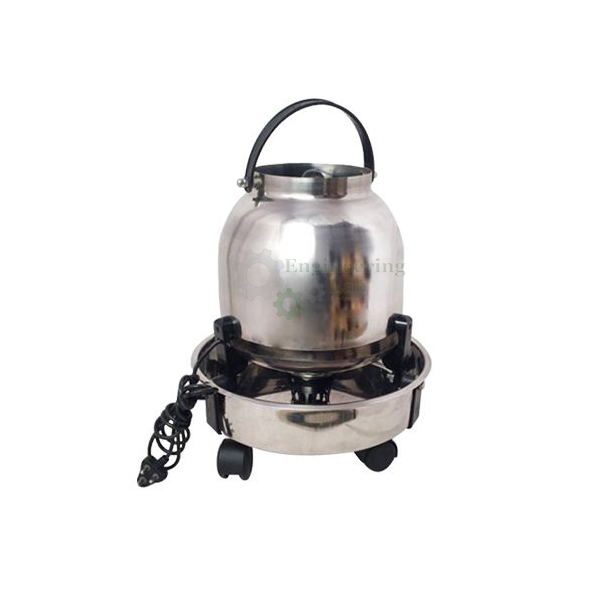

Humidifier (code EL-LEAA-11024) is a splash plate rotating disc humidifier used to raise the humidity of an enclosed area to as high as 95% RH. It atomizes up to 3.0 litre of water per hour at full evaporation in the driest ambient condition, has a 304 grade stainless steel body tank and stainless steel housing on a castor wheel, and is driven by a 1/20 HP motor from a 220/230 V single phase supply.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Humidifier Used For?

In a rotating disc humidifier, a spinning disc throws water from the tank against a splash plate, breaking it into fine droplets that evaporate into the air and raise its humidity. It is used where a room or other enclosed area, such as a curing, conditioning or growth room, needs its humidity raised above the natural level. The unit is wheeled into place, the tank is filled and the motor is run continuously, with the optional humidity controller and timer box switching it to hold the required level. Evaporation, and so the output, is greatest when the surrounding air is driest.

What to Specify When Ordering

• Quantity — the number of humidifiers required.
• Options — whether the all stainless steel 304 grade construction and the humidity controller with timer box are wanted.

Frequently Asked Questions

How high can it raise the humidity?
It is designed to raise the humidity of an enclosed area to as high as 95% RH, using its splash plate rotating disc.

How much water does it atomize?
It can atomize up to 3.0 litre of water per hour at full evaporation in the driest ambient condition.

How does a splash plate rotating disc humidifier work?
A rotating disc throws water against a splash plate, which breaks it into a mist of fine droplets that evaporate into the surrounding air.

What is the humidifier made of?
The body tank is 304 grade stainless steel and the housing is stainless steel on a castor wheel, with an all 304 grade interior and exterior offered as an option.

Can it be controlled automatically?
A humidity controller with timer box is available as an option, switching the unit on and off to keep the humidity at the level required.

OEM Manufacturer

Buyers of the Humidifier deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Laboratory Equipment and Accessories

• Humidity Chamber — double walled temperature and humidity test cabinet with steam injection, compressor cooling and four inner sizes.
• Humidity Chamber Cooling Side Panel — compressor-cooled humidity cabinet for 5 to 50 °C and 40% to 95% humidity, on caster wheels.
• Digital Temperature Humidity Meter — desk or wall LCD unit showing temperature, humidity and time together, with max/min memory and alarm.
• Plant Growth Chamber (Refrigerated) — refrigerated plant growth cabinet, 10 to 50 °C, 60 to 95% humidity, with timed day and night lighting.

See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of humidifiers and whether the humidity controller with timer box is needed and your delivery location through the contact page, or add the Humidifier to the enquiry cart from this page.
