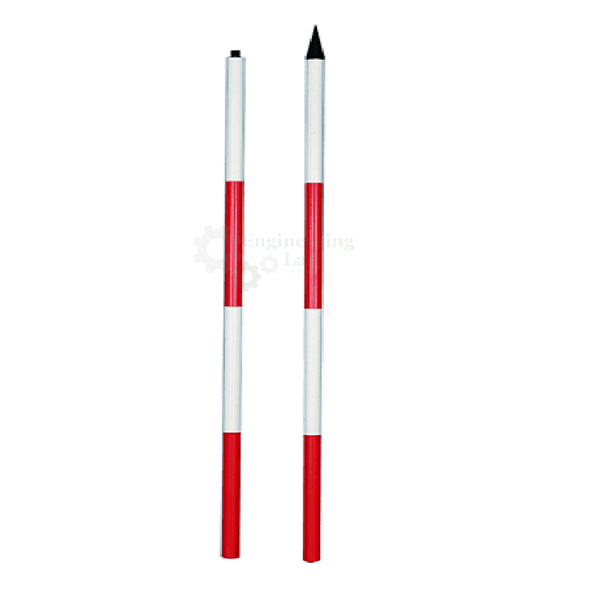

Range Pole
Product Code : EL-SLE-10983
Range Pole (code EL-SLE-10983) is a ranging rod used to mark survey stations, sight them and range straight lines. The traditional rod is light, straight bamboo, about 30 mm in diameter and 2 m or 3 m long, painted in alternating bands of 200 mm, 500 mm or 1 foot, with an iron point at the bottom and a flag about 250 mm square at the top; a sectional version has 12" orange and white sections joined by 5/8" x 11 threads.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Marking station positions, sighting stations and ranging straight lines |
| Sizes | 2 m or 3 m |
| Longer rods | 3 to 6 metres, for very long survey lines |
| Bottom | Iron point |
| Flag | About 250 mm square, at the top |
| Bamboo ranging rod | |
| Material | Light, straight bamboo |
| Diameter | About 30 mm |
| Bands | Alternating red and white, red and yellow, or black and white |
| Band length | 200 mm, 500 mm or 1 foot |
| Sectional range pole | |
| Sections | Alternating 12" orange and white |
| Joints | Threaded, 5/8" x 11, for fast assembly |
| Supply | |
| Product code | EL-SLE-10983 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Range Pole Used For?
Ranging is the marking of intermediate points so that a survey line can be chained or taped along its true straight course. Rods are pushed into the ground at the end stations, the iron point holding them upright, and further rods are lined up by eye between them until all appear in one line. The painted bands and the flag make each rod visible at a distance or in bad weather, and the bands can also serve as a rough scale for short measurements. Longer rods of 3 to 6 metres are used where survey lines are very long.
What to Specify When Ordering
- Quantity — the number of range poles required.
- Length — 2 m or 3 m.
Frequently Asked Questions
What is a range pole used for?
It marks the positions of survey stations so they can be sighted, and it is used to range straight lines by lining up intermediate rods between the ends.
What lengths are available?
Ranging rods are available in 2 m and 3 m sizes, and longer rods of 3 to 6 metres are used for very long survey lines.
Why are the rods painted in bands?
Alternating bands, such as red and white, red and yellow or black and white, in lengths of 200 mm, 500 mm or 1 foot, let the rod be sighted over long distances or in bad weather.
What is fitted at the top and bottom?
Each rod has an iron point at the bottom for pushing into the ground and is surmounted with a flag about 250 mm square.
How does the sectional pole go together?
The sectional range pole has alternating 12" orange and white sections joined by 5/8" x 11 threaded joints, which allow fast assembly on site.
OEM Manufacturer
The Range Pole is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests surveying instruments and accessories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
