Plane Table Set
Product Code : EL-SLE-10987

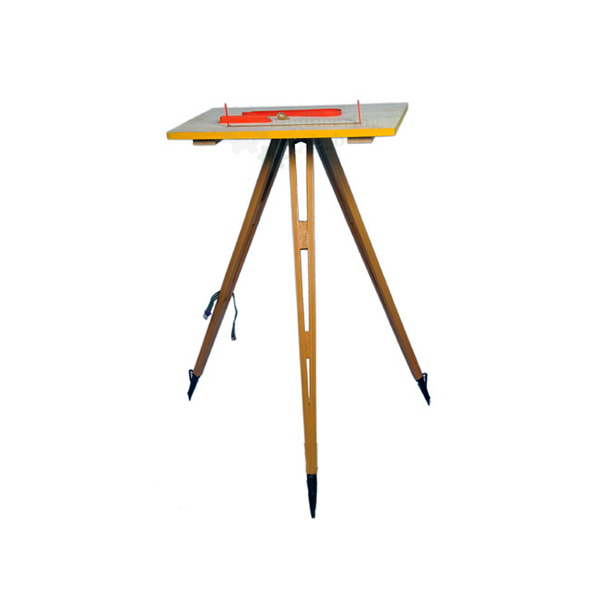

Plane Table Set (code EL-SLE-10987) is a surveying set that provides a solid, level surface for making field drawings, charts and maps. The table is set over a point and levelled, a drawing sheet is fixed to its surface, and the alidade supplied, of the modern type, is a ruler fitted with a telescopic sight for sighting objects and drawing lines towards them.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Solid and level surface for field drawings, charts and maps |
| Table | Set over a point and brought to a horizontal level; drawing sheet attached to the surface |
| Alidade | Modern type: ruler with a telescopic sight |
| Product code | EL-SLE-10987 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Plane Table Set Used For?
Plane tabling is a surveying method in which the map is drawn in the field at the same time as the observations are made, so that the plotted work can be checked against the ground as it proceeds. The table is set up over a station, levelled and oriented, and the drawing sheet is fixed to it. The surveyor sights each object of interest through the telescopic sight of the alidade and draws a ray along the ruler edge in its direction; intersecting rays from two or more stations fix the positions of the objects on the sheet.
What to Specify When Ordering
- Quantity — the number of plane table sets required.
Frequently Asked Questions
What is a plane table used for?
It gives surveyors a solid and level surface on which to make field drawings, charts and maps directly on site while observations are made.
What type of alidade is supplied?
The set comes with the modern type of alidade, a ruler fitted with a telescopic sight, used to draw a line on the sheet in the direction of each object.
How is the table set up?
The table is placed over a survey point, brought to a horizontal level, and a drawing sheet is then attached to its surface ready for plotting.
How are positions plotted with the alidade?
Each object is sighted through the telescopic sight and a ray is drawn along the ruler; rays to the same object from two or more stations intersect at its plotted position.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Plane Table Set at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its surveying instruments and accessories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
