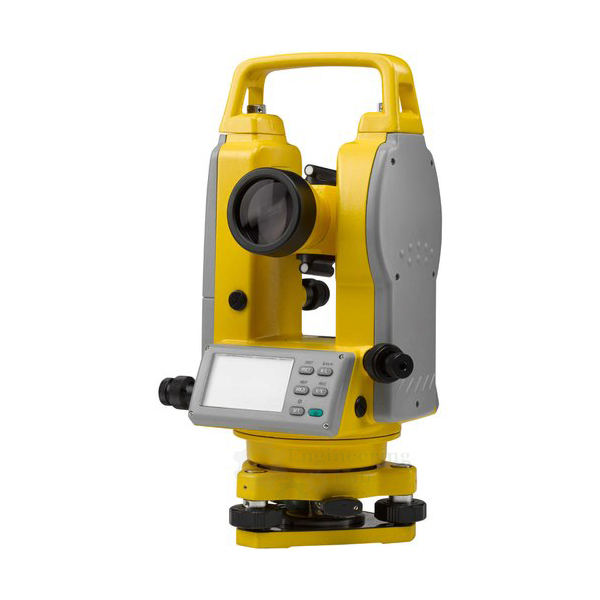

Electronic Theodolite
Product Code : EL-SLE-10979
Electronic Theodolite (code EL-SLE-10979) is a digital surveying instrument used to measure angles in the horizontal and vertical planes. It has a 30X telescope with a 45 mm objective lens, photoelectric angle reading by incremental encoder with 2" accuracy and a selectable 1"/5" minimum reading, a two-sided, two-line LCD, an auto vertical compensator with liquid-electric detection and a 3X optical plummet.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Measuring angles in the horizontal and vertical planes, mainly for surveying |
| Display | |
| LCD display type | LCD segment, 2 sides, two lines |
| Level sensitivity | |
| Plate level | 30"/2 mm |
| Circular level | 8"/2 mm |
| Telescope | |
| Magnification | 30X |
| Objective lens | 45 mm |
| Overall length | 157 mm |
| Image | Erect |
| Field of view | 1° 30" |
| Minimum focus | 1.4 m |
| Resolving power | 3.0' |
| Stadia ratio | 100 |
| Stadia constant | 0 |
| Electronic angle measurement | |
| Reading system | Photoelectric detection by incremental encoder |
| Circle diameter (V, Hz) | 79 mm |
| Minimum reading | 1"/5", selectable |
| Accuracy | 2" |
| Horizontal angle | Dual |
| Vertical angle | Dual |
| Auto vertical compensator | |
| System | Liquid-electric detection or plate level, selectable |
| Working range | +3' |
| Accuracy | 1" (liquid electric detection) |
| Plate level | 30"/2 mm |
| Optical plummet telescope | |
| Image | Erect |
| Magnification | 3X |
| Focusing range | 0.5 m to infinity |
| Supply | |
| Product code | EL-SLE-10979 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Electronic Theodolite Used For?
A theodolite measures the horizontal angle between survey points and the vertical angle above or below the horizontal, from which traverses, setting-out lines and heights are worked out. The surveyor sets the instrument on a tripod over the station mark using the 3X optical plummet, levels it with the plate and circular levels, sights each target through the 30X telescope and reads the angles on the two-line LCD on either side of the instrument. The auto vertical compensator corrects vertical readings for small tilts within its working range, and the stadia ratio of 100 lets distances be found from a staff. Theodolites have also been adapted for meteorology and rocket launch work.
What to Specify When Ordering
- Quantity — the number of theodolites required.
Frequently Asked Questions
What angle accuracy does the theodolite give?
Angle measurement accuracy is 2", with photoelectric detection by an incremental encoder and a minimum reading selectable between 1" and 5".
What are the telescope specifications?
The telescope has 30X magnification, a 45 mm objective lens, an erect image, a 1° 30" field of view, a minimum focus of 1.4 m and an overall length of 157 mm.
Can it be used for stadia distance measurement?
Yes. The telescope has a stadia ratio of 100 and a stadia constant of 0, so the distance is the staff intercept between the stadia hairs multiplied by 100.
What does the auto vertical compensator do?
It corrects vertical angle readings for small tilts of the instrument, using liquid-electric detection with 1" accuracy over a working range of +3', or plate level mode, selectable.
How is the instrument centred over a station?
A 3X optical plummet telescope with an erect image and a focusing range from 0.5 m to infinity is used to centre the theodolite over the ground mark.
What display does it have?
It has a segment LCD on 2 sides of the instrument showing two lines, with dual horizontal and vertical angle readings and a 79 mm circle.
OEM Manufacturer
Buyers of the Electronic Theodolite deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests surveying instruments and accessories, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Surveying Equipment
- Range Pole — banded survey ranging rod in 2 m or 3 m lengths with iron point and flag.
- Plane Table Set — field mapping table set with a telescopic sight alidade for plotting survey lines.
- Square Hole Form — concrete hole form leaving a 4" x 4" square opening, aligned and stripped by its tab.
- Safety Helmet — hard PVC safety helmet for construction, mining, material handling and port work.
- Corner Guard — edge protector for 4" straps or chains that stops chipping and scarring of concrete.
See the full Surveying Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other surveying lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of theodolites required and your delivery location through the contact page, or add the Electronic Theodolite to the enquiry cart from this page.
