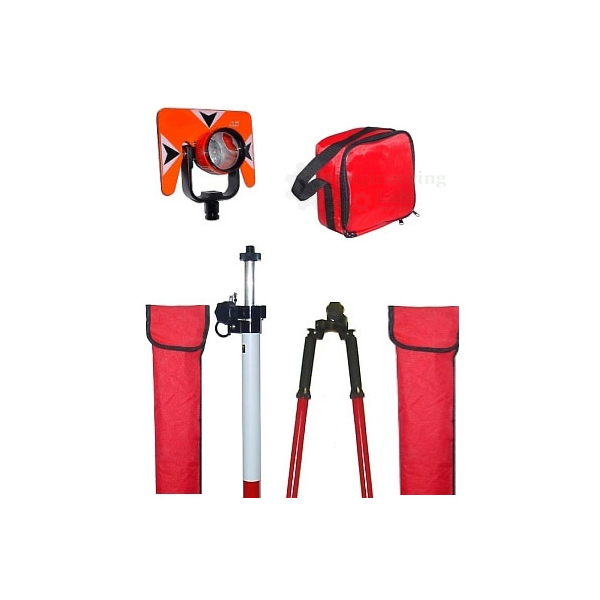

Prism with Pole
Product Code : EL-SLE-10984
Prism with Pole (code EL-SLE-10984) is a survey prism and pole set used as the target for total station or robotic instrument measurements. It has a 25.4 mm tilting prism with 0/30 mm offsets, a 30 mm diameter built-in circular vial, a 4.5 cm stainless steel threaded point and threaded pole sections, and the prism can be mounted at the top, bottom or middle of the pole or between its sections.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Robotic or total station applications; measuring the elevation of existing ground or grade using a sight level |
| Prism | 25.4 mm tilting prism with 0/30 mm offsets |
| Circular vial | 30 mm diameter, built-in |
| Point | 4.5 cm stainless steel, threaded |
| Pole sections | Threaded |
| Prism mounting | On the top, bottom or middle, or between pole sections |
| Product code | EL-SLE-10984 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Prism with Pole Used For?
A total station measures distance by sending a signal to a reflector and measuring the signal that returns, so the prism is held over the point being surveyed as the instrument's target. The rod person sets the stainless steel point on the ground mark, holds the pole upright by centring the bubble of the 30 mm circular vial and tilts the prism to face the instrument; the 0/30 mm offset in use is matched in the instrument settings so the distance refers to the point. The threaded sections let the pole be assembled to suit the job, and the same pole can be used with a sight level to measure the elevation of existing ground or grade.
What to Specify When Ordering
- Quantity — the number of prism and pole sets required.
Frequently Asked Questions
Which instruments is the Prism with Pole used with?
It is meant for robotic or total station applications, where the prism serves as the measurement target, and it can also be used with a sight level for ground elevations.
What prism is fitted?
A 25.4 mm tilting prism with 0/30 mm offsets is fitted, and it can be mounted on the top, bottom or middle of the pole or between pole sections.
How is the pole held vertical?
A built-in circular vial of 30 mm diameter shows when the pole is upright over the point, so that the prism sits directly above the ground mark.
What is at the foot of the pole?
The pole ends in a 4.5 cm stainless steel threaded point that is set on the ground mark, and the pole itself is made up of threaded sections.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Prism with Pole at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its surveying instruments and accessories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
