Universal Joint Apparatus
Product Code : EL-AMLE-10640

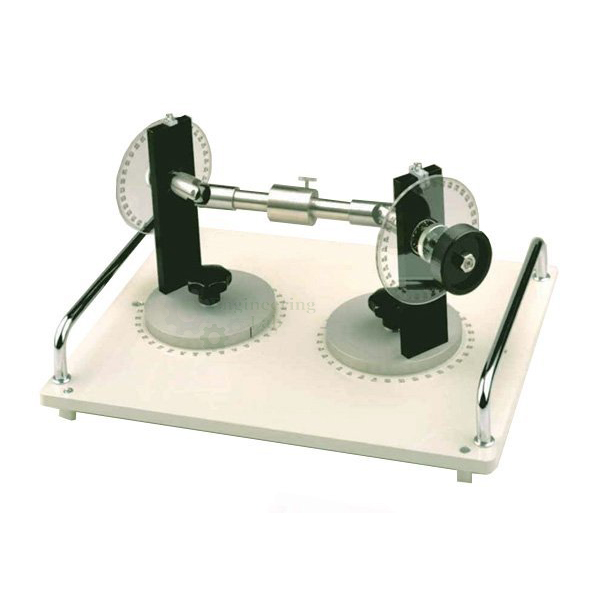

Universal Joint Apparatus (code EL-AMLE-10640) is a benchtop model used to demonstrate how angular motion passes through articulated joint shafts, the gimbal error this causes and how the error can be avoided. Two couplings made from standard industrial universal joint parts are linked by a split intermediate shaft, each deflection angle is set individually, drive is by hand wheel, and transparent plastic angle scales sit on both shaft ends.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Benchtop experiment on gimbal error and its avoidance on articulated joints |
| Joints | Two couplings, standard industrial universal joint parts |
| Intermediate shaft | Split |
| Deflection angle | Set individually for each joint and read on scales |
| Drive | Hand wheel |
| Angle scales | Transparent plastic, on the drive and power take-off sides |
| Shaft ends | Mounted in ball bearings |
| Base plate | Solid, painted |
| Dimensions | 360 × 280 × 185 mm (l × w × h) |
| Product code | EL-AMLE-10640 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Universal Joint Apparatus Used For?
Joint shafts fitted with universal joints carry a drive between shafts set at an angle, as in vehicle transmissions and machine tool drives, yet each joint turns its output unevenly. On this model the student sets a deflection angle on each joint, turns the hand wheel and reads the angle of the drive shaft and of the power take-off shaft on their transparent scales at intervals through a revolution. The difference between the two readings is the gimbal error, and trying different joint settings shows how the arrangement of the couplings decides whether the error is cancelled or added to.
What to Specify When Ordering
- Quantity — the number of universal joint models required.
Frequently Asked Questions
What is the Universal Joint Apparatus used to show?
It shows the transmission of angular motion to joint shafts, the gimbal error that results, and how this error can be rectified by the way the couplings are arranged.
How is the model driven?
Drive is applied by turning a hand wheel on the drive side, and the shaft ends at both sides run in ball bearings.
How is the angle difference read?
Transparent plastic angle scales on the drive side and the power take-off side allow the angle of each shaft to be read, and the difference between them gives the gimbal error.
Can each joint be set to a different angle?
Yes. The deflection angle of each of the two joints can be set individually and read on its scale, so matched and unmatched arrangements can be compared.
What are the dimensions of the model?
At 360 × 280 × 185 mm (l × w × h), the model is built on a solid, painted base plate using standard industrial universal joint parts.
OEM Manufacturer
Buyers of the Universal Joint Apparatus deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests applied mechanics apparatus for statics, friction, machines and mechanisms, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Applied Mechanics Equipment
- Hookes Coupling Apparatus — two universal joints on an intermediate shaft with rotary disks for measuring gimbal error.
- Oldham Coupling — hand-cranked three-disc tongue-and-groove coupling model for parallel displaced shafts, about 300 mm square.
- Universal Force Table — 400 mm cast aluminium force table graduated in 360 degrees with six pulleys and slotted weight sets.
See the full Applied Mechanics Lab Equipment range or all Mechanical Engineering Lab Equipment.
