Winch Cab Single Purchase Apparatus
Product Code : EL-AMLE-10644

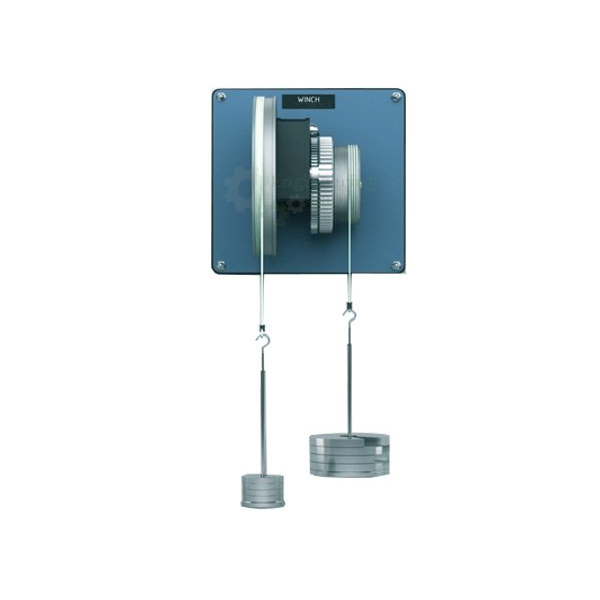

Winch Cab Single Purchase Apparatus (code EL-AMLE-10644) is a wall-mounted winch crab, a geared lifting machine in which a single set of gearing links the effort to the load. It is fitted with heavy cast iron wall brackets and has a 25 cm diameter grooved wheel with machine-cut gears, and a double purchase version with a double set of gearing is also offered.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Grooved wheel | 25 cm dia. |
| Gears | Machine cut |
| Wall brackets | Heavy cast iron |
| Single purchase | |
| Gearing | Single set of gearing |
| Double purchase | |
| Gearing | Double set of gearing arrangement; otherwise as the single purchase model |
| Supply | |
| Product code | EL-AMLE-10644 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Winch Cab Single Purchase Apparatus Used For?
A winch crab is a geared lifting machine: an effort turns a wheel, and the gearing winds up the load more slowly than the effort moves, so a small effort can raise a heavier load. In the laboratory the student applies a known load, finds the effort needed to raise it steadily and measures how far the effort and the load each move. Dividing load by effort gives the mechanical advantage, the ratio of the distances gives the velocity ratio, and comparing the two gives the efficiency; the double purchase version repeats the test with a second stage of gearing.
What to Specify When Ordering
- Quantity — the number of winch crabs required.
- Version — single purchase or double purchase.
Frequently Asked Questions
What is the difference between single and double purchase?
The single purchase winch crab has one set of gearing, while the double purchase version is built the same way but with a double set of gearing arrangement for additional mechanical advantage.
How is the winch crab mounted?
It is fitted with heavy cast iron wall brackets, so the apparatus is fixed to a laboratory wall for use.
What size is the grooved wheel?
The grooved wheel has a diameter of 25 cm, and the gears of the winch crab are machine cut.
What is measured with a winch crab?
The load raised and the effort applied are measured, along with the distances they move, to work out the mechanical advantage, velocity ratio and efficiency of the machine.
OEM Manufacturer
The Winch Cab Single Purchase Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests applied mechanics apparatus for statics, friction, machines and mechanisms for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Applied Mechanics Equipment
- Pulley Demonstration Set — 32 inch pulley frame with single, triple tandem and quadruple pulleys, wheel and axle and brass masses.
- Wheel and Axle Apparatus — wall-mounted three-pulley differential block with 250, 100 and 75 mm pulleys and two weight sets.
- Worm and Wheel Apparatus — wall-bracket worm and wheel with 25 cm machine-cut worm gear, 12 cm drum and effort pulley.
See the full Applied Mechanics Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other applied mechanics lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of winch crabs and whether the single or double purchase version is needed and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
