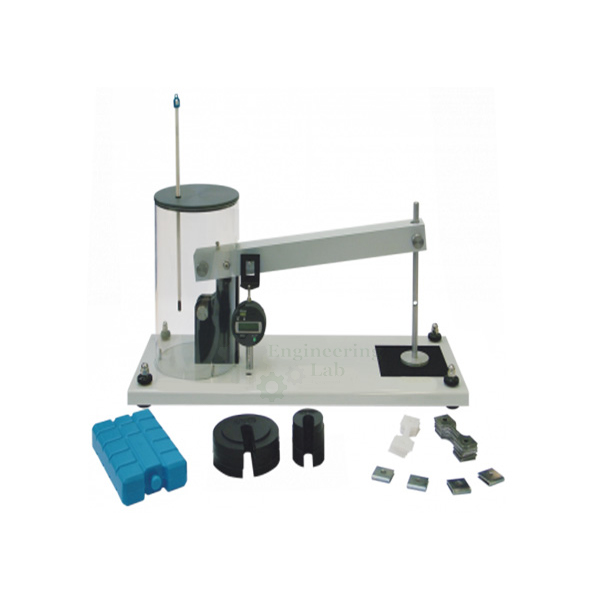

Creep Testing Machine
Product Code : EL-MTLE-10606
Creep Testing Machine (code EL-MTLE-10606) is a lever-loaded instrument for testing the creep of lead and plastic specimens at room temperature under low loads, with a digital indicator measuring the specimen's extension over time. Its load beam has an 8:1 mechanical advantage and a ball-bearing pivot, loads are applied as weights on a weight hanger, and a cool-pack with a transparent enclosure allows tests on the effect of temperature.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Specimens | Lead and plastic |
| Test conditions | Room temperature, low loads |
| Load beam | Simple lever with 8:1 mechanical advantage, giving a steady and uniform tensile load |
| Pivot | Ball-bearing pivot on the load beam for correct loading of the specimen |
| Extension measurement | Digital indicator measures the extension (creep) of the specimen under load |
| Loading | Weights added to a weight hanger |
| Temperature tests | Cool-pack, frozen or heated, placed next to the specimen |
| Enclosure | Transparent, preserves the temperature around the specimen during the test |
| Product code | EL-MTLE-10606 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Creep Testing Machine Used For?
Creep is the slow, continuing stretch of a material held under a constant load, and lead and many plastics creep noticeably even at room temperature, which makes them suitable for short classroom tests. Students fit a specimen, add weights to the hanger so that the 8:1 beam applies a steady tensile load, and note the digital indicator reading against time to plot a creep curve showing its primary, secondary and tertiary stages. To show the effect of temperature, a frozen or heated cool-pack is placed beside the specimen, the transparent enclosure is fitted, and the curve is compared with one taken at room temperature.
What to Specify When Ordering
- Quantity — the number of creep testing machines required.
Frequently Asked Questions
Which materials can be tested?
The machine tests the creep behaviour of lead and plastic specimens at room temperature under low loads.
How is the load applied?
Students add weights to a weight hanger on the load beam, a simple lever with an 8:1 mechanical advantage that gives a steady, uniform tensile load.
How is creep measured?
A digital indicator measures the extension of the specimen under load, and students record it against time to follow the creep.
Can the effect of temperature be shown?
Yes. A cool-pack is frozen or heated and placed next to the specimen, and the transparent enclosure is fitted to preserve the temperature around it during the test.
Why is a ball-bearing pivot used?
The ball-bearing pivot on the load beam ensures correct loading of the specimen as the lever transfers the hanger load.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Creep Testing Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its materials testing and metallography specimen preparation equipment go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Materials Testing Equipment
- Vicker Hardness Tester — motorized hardness machine with built-in projection screen for metals from lead to hard steel.
- Electronic Spring Tension Machine — computer-controlled tester for spring load, deflection and rate, ball screw drive, 10 to 300 kN.
- Metallurgical Samples — 23 Bakelite-mounted metal microstructure specimens with booklet and photographs in a wooden box.
See the full Materials Testing Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other materials testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of creep testing machines required and the delivery location through the contact page; the Add To Cart button on this page also adds the Creep Testing Machine to an enquiry.
