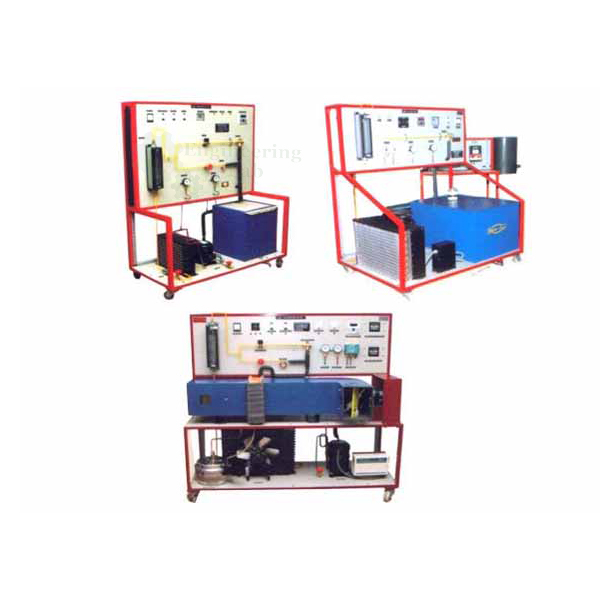

Computerized Bench Top Cold Storage Trainer
Product Code : EL-RAACLE-10788
Computerized Bench Top Cold Storage Trainer (code EL-RAACLE-10788) is a cold storage training unit with a large refrigeration chamber and two evaporators, used to investigate how evaporator size and temperature affect the chamber climate and icing. It has electric and hot gas defrosting run by a defrost controller or a defrost timer, a compressor giving 999 W at -5/55 °C, two adjustable heat sources as cooling load, one of them producing steam, and USB data acquisition.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Refrigeration chamber | Large, with two evaporators |
| Evaporator study | Effect of different evaporator sizes on cold storage room climate and icing |
| Defrosting methods | Electric defrost heater and hot gas defrosting |
| Defrost control | Defrost controller (as required) or defrost timer (at set intervals) |
| Cooling load | Two adjustable heat sources in the chamber; one generates water steam to introduce humidity |
| Display | Digital displays |
| Data acquisition | Included software with PC connection via USB; records defrosting over time and shows the chamber climate online in the h-x diagram |
| Refrigerant flow rate | Determined from the pressure measurement |
| Compressor | |
| Refrigeration capacity | 999 W at -5/55 °C |
| Power consumption | 565 W |
| Cooling loads and receiver | |
| Latent cooling load | 2 × 0 to 250 W |
| Sensible cooling load | 1 × 0 to 200 W; 1 × 0 to 250 W |
| Receiver | 1,3 L |
| Refrigerant | |
| Refrigerant | R134a/22/etc. |
| Filling volume | 1,3 kg |
| CO2-equivalent | 0,8 t |
| Measuring ranges | |
| Pressure | 2 × 0 to 16 bar; 1 × 0 to 25 bar |
| Temperature | 7 × -50 to 150 °C; 1 × -25 to 125 °C |
| Relative humidity | 0 to 100% |
| Flow rate | 2 to 27 L/h |
| Learning content | |
| Evaporator effect | Effect of evaporator size and temperature on the climate in the refrigeration chamber |
| Defrost controls | Configuration of defrost controls such as defrost timer or defrost controller |
| Frost and ice | Frosting and icing under different operating conditions |
| Cooling loads | Difference between latent and sensible cooling load |
| Defrosting | Different defrosting methods (electric heater, hot gas) |
| Power, dimensions and weight | |
| Power supply | 230 V, 50 Hz, 1 phase; or 230 V, 60 Hz, 1 phase |
| Dimensions | Approx. 2000 × 800 × 1400 mm (L × W × H) |
| Weight | Approx. 285 kg |
| Supply | |
| Product code | EL-RAACLE-10788 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Computerized Bench Top Cold Storage Trainer Used For?
In a cold store, moisture from the stored goods and from air entering the room freezes on the evaporator, and the frost layer cuts heat transfer until it is removed. Students run the chamber with one or both evaporators, impose dry and humid loads with the two heat sources, and watch frost and ice build up under different conditions. They then compare electric and hot gas defrosting, started either by the defrost controller or at intervals by the timer, while the software records the defrost process over time and plots the chamber climate on the h-x diagram, showing how latent and sensible cooling loads differ.
What to Specify When Ordering
- Quantity — the number of cold storage trainers required.
- Mains supply — state 50 Hz or 60 Hz; both versions are 230 V, 1 phase.
Frequently Asked Questions
What does the cold storage trainer investigate?
It shows how evaporator size and temperature affect the climate and icing in the refrigeration chamber, how frost forms under different conditions, and how latent and sensible cooling loads differ.
Which defrosting methods are fitted?
An electric defrost heater and hot gas defrosting are both available, and defrosting can be started as required by a defrost controller or at set intervals by a defrost timer.
How is humidity introduced into the chamber?
One of the two adjustable heat sources generates water steam, simulating the humidity brought into a cold store, while the other heat source provides a dry load.
What is the compressor rating?
The compressor gives a refrigeration capacity of 999 W at -5/55 °C with a power consumption of 565 W, and the receiver holds 1,3 L.
What can the data acquisition software show?
It records the defrosting process over time and represents the chamber climate online in the h-x diagram, with values passed to a PC by USB.
What are the cooling load ranges?
Latent cooling load covers 2 × 0 to 250 W, and sensible cooling load covers 1 × 0 to 200 W plus 1 × 0 to 250 W.
OEM Manufacturer
The Computerized Bench Top Cold Storage Trainer is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests refrigeration and air conditioning trainers and test rigs for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
