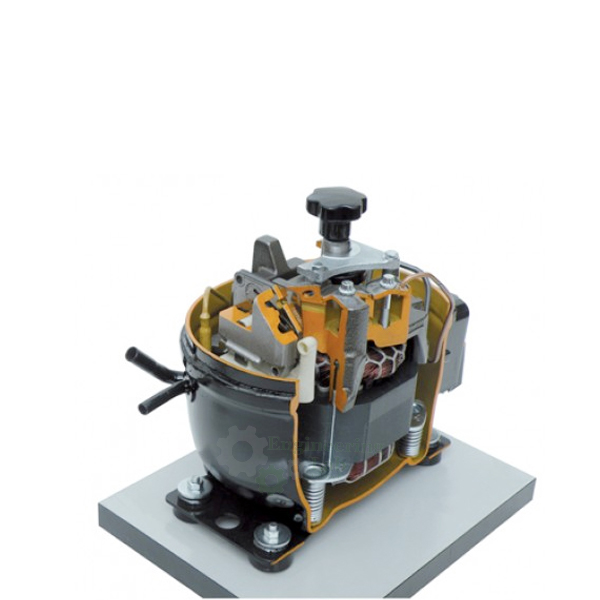

Cut Section Model of Open Hermetic Compressor
Product Code : EL-RAACLE-10797
Cut Section Model of Open Hermetic Compressor (code EL-RAACLE-10797) is a teaching model made from original compressor parts and sectioned to expose its internal construction and show how the compressor works. It is a piston compressor kit with piston and cylinder, housing, driving gear and cylinder cover with valves, painted and mounted on a base, about 500 × 400 × 350 mm and 25 kg, and it comes with a key card and literature.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Construction | Made from original hermetic compressor parts, suitably sectioned to expose the internal construction |
| Type | Kit of a piston compressor |
| Parts shown | Piston and cylinder, housing, driving gear, cylinder cover with valves |
| Finish | Suitably painted |
| Mounting | Metal, mild steel sheet or wooden base |
| Supplied with | Key card and literature explaining its working |
| Dimensions | Approx. 500 × 400 × 350 mm (L × W × H) |
| Weight | Approx. 25 kg |
| Product code | EL-RAACLE-10797 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Section Model of Open Hermetic Compressor Used For?
Cut section models let students see the moving parts of a compressor that are normally hidden inside its housing, so that they can relate the drawings and descriptions in their course to real components. With the model on the bench, the instructor follows the path of the refrigerant from the suction side through the cylinder and the valves in the cylinder cover to the discharge, and shows how the driving gear produces the stroke of the piston. The key card names each part, and the literature supplied explains the working cycle for later study.
What to Specify When Ordering
- Quantity — the number of open hermetic cut section models required.
- Base — a metal, mild steel sheet or wooden base.
Frequently Asked Questions
What does the cut section model show?
It shows the internal construction of a piston compressor, with the piston and cylinder, housing, driving gear and cylinder cover with valves exposed by sectioning.
Is the model made from real compressor parts?
Yes, it is made from original hermetic compressor parts, suitably sectioned and painted so that the fine constructional details are clear.
What is supplied with the model?
A key card identifying the parts and literature explaining how the compressor works are supplied with the model for classroom use.
How is it mounted, and how large is it?
It is mounted on a metal, mild steel sheet or wooden base, measures about 500 × 400 × 350 mm and weighs approximately 25 kg.
How is the model used in teaching?
Instructors use it to trace the refrigerant path through the cylinder and the valves in the cylinder cover and to show how the driving gear moves the piston.
OEM Manufacturer
The Cut Section Model of Open Hermetic Compressor is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests refrigeration and air conditioning trainers and test rigs for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
