Cut Section Model of Hermetic Compressor
Product Code : EL-RAACLE-10799

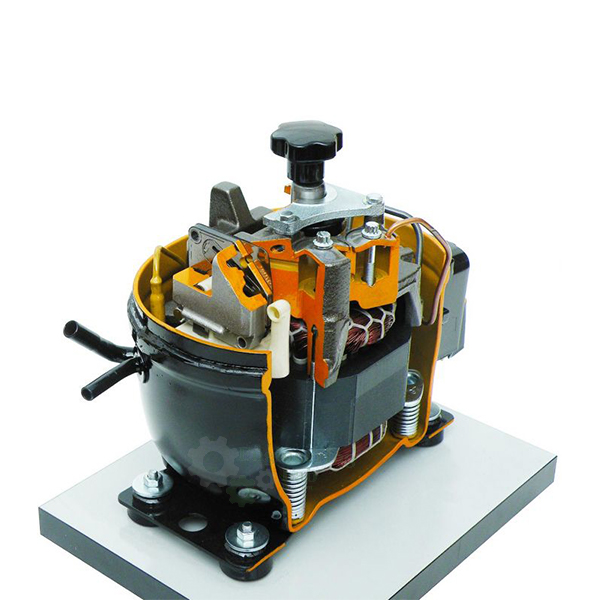

Cut Section Model of Hermetic Compressor (code EL-RAACLE-10799) is a sectioned teaching model of a piston-type hermetic compressor, built from original hermetic compressor parts so that its internal construction and working can be seen. The cut exposes the piston running in its cylinder, the housing, the driving gear and the valved cylinder cover; the painted model sits on a base, measures roughly 500 by 400 by 350 mm, weighs 25 kg and includes a key card and literature.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Built from | Original hermetic compressor parts |
| Sectioning | Suitably sectioned to expose internal construction and fine constructional details |
| Compressor kit | Piston compressor |
| Components shown | Piston and cylinder, housing, driving gear, cylinder cover with valves |
| Paint | Suitably painted |
| Base options | Metal, mild steel sheet or wooden base |
| Supplied with | Key card; literature explaining its working |
| Dimensions | Approx. 500 × 400 × 350 mm (L × W × H) |
| Weight | Approx. 25 kg |
| Product code | EL-RAACLE-10799 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Section Model of Hermetic Compressor Used For?
In a hermetic compressor the motor and compressor are sealed together in a welded shell, so the working parts cannot normally be inspected. The sectioned model opens up the shell for classroom study: students can identify the piston, cylinder, housing and driving gear, see the suction and discharge valves held in the cover, and follow how gas is drawn in, compressed and discharged on each stroke. The key card is used to name the parts during a lesson, and the accompanying literature explains the compressor's working in more detail.
What to Specify When Ordering
- Quantity — the number of hermetic compressor models to be supplied.
- Mounting base — metal, mild steel sheet or wooden.
Frequently Asked Questions
What is a hermetic compressor, and what does this model reveal?
A hermetic compressor has its motor and compressor sealed in one shell. This model is cut open to reveal the piston in its cylinder, the housing, the driving gear and the valved cylinder cover inside.
What parts were used to make the model?
The model is built from original hermetic compressor parts, which are sectioned and painted so that fine constructional details can be seen clearly.
Does the model come with teaching material?
Yes, a key card and literature describing how the compressor works are included, for use in lessons and for students' own study.
What are its size and weight?
The model is roughly 500 mm long, 400 mm wide and 350 mm high, and it weighs about 25 kg on its base.
Which base options are there?
The model is mounted on a metal or mild steel sheet base, and a wooden base is also listed as an option.
OEM Manufacturer
Buyers of the Cut Section Model of Hermetic Compressor deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests refrigeration and air conditioning trainers and test rigs, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Refrigeration and Air Conditioning Equipment
- Cut Section Model of Open Hermetic Compressor — sectioned piston compressor teaching model with key card and literature, on a painted metal or wooden base.
- Cut Section Model of Rotary Hermetic Compressor — sectioned rolling-piston compressor model with roller, eccentric shaft and spring-loaded blade, with key card.
- Refrigeration Assembly and Maintenance Accessories — workbench refrigeration assembly trainer with bolted pipe joints, condensing unit, show case evaporator and chamber.
See the full Refrigeration and Air Conditioning Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other refrigeration and air conditioning lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of hermetic compressor models and the base required and your delivery location through the contact page, or add the Cut Section Model of Hermetic Compressor to the enquiry cart from this page.
Last updated: October 2026
