Computerized Air Conditioner Trainer
Product Code : EL-RAACLE-10787

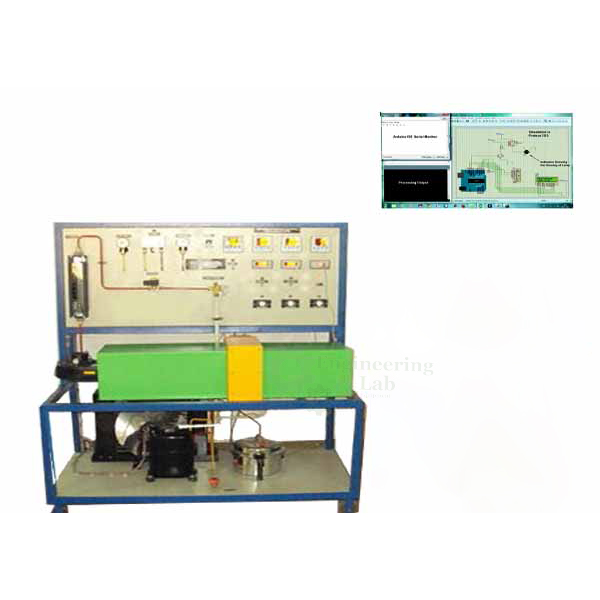

Computerized Air Conditioner Trainer (code EL-RAACLE-10787) is an air conditioning test unit for examining the operation and effect of each component of an air conditioning system, built from components also used in building services engineering. A 300 × 350 mm open air duct holds a 6 kW direct evaporator air cooler with condensing unit, a 4 kW steam humidifier, a 1150 m³/h fan, a 1 kW air preheater and a 2 kW reheater, each switchable on its own, with readings sent to a PC over USB.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Purpose | Examining the operation and effect of the individual components of an air conditioning system |
| Components | Components also used in building services engineering, with emphasis on original components |
| Switching | Each component can be switched on or off individually |
| Air duct arrangement | Air cooler (direct evaporator with condensing unit), steam humidifier, fan, air preheaters and reheaters in an open air duct |
| Air sensors | Air temperature and humidity recorded before and after each stage |
| Refrigerant sensors | Refrigerant pressures and temperatures recorded; refrigerant flow rate determined from the pressure measurement |
| Display | Digital displays |
| PC connection | USB, with data acquisition software included |
| Steam humidifier | |
| Power consumption | 4 kW |
| Steam capacity | 5,5 kg/h, switchable in three stages |
| Fan | |
| Power consumption | 167 W |
| Maximum volumetric flow | 1150 m³/h |
| Speed | 1000 to 2600 min-1 |
| Maximum pressure | 460 Pa |
| Heating, cooling and duct | |
| Air preheater | 1 kW, switchable in two stages |
| Air reheater | 2 kW, switchable in two stages |
| Air duct | 300 × 350 mm (W × H) |
| Direct evaporator (air cooler) | 6 kW |
| Condensing unit | |
| Power consumption | 968 W at 5/25 °C |
| Refrigeration capacity | 2,3 kW at 5/25 °C |
| Refrigerant | |
| Refrigerant | R134a/22/etc |
| Filling volume | 3,3 kg |
| CO2-equivalent | 2,1 t |
| Measuring ranges | |
| Differential pressure | 0 to 100 Pa |
| Temperature | 5 × 0 to 50 °C; 4 × -100 to 200 °C |
| Humidity | 5 × 10 to 90% |
| Refrigerant pressure | -1 to 15 bar; -1 to 24 bar |
| Refrigerant flow rate | 8 to 102 L/h |
| Learning content | |
| System set-up | Main components of an air conditioning system and their function |
| Variables | Variables in air conditioning |
| Air measurements | Measuring temperature and air humidity |
| Airflow | Effect of the airflow |
| h-x diagram | Changes of state in the h-x diagram |
| log p-h diagram | Cyclic process in the log p-h diagram |
| Capacities | Determining heating and cooling capacities |
| Humidification | Air conditioning system with steam humidifier |
| Experiment range | Wide experimental programme for conditioning of room air |
| Power, dimensions and weight | |
| Power supply | 230 V, 50 Hz, 1 phase; or 230 V, 60 Hz, 1 phase |
| Dimensions | Approx. 2500 × 800 × 1600 mm (L × W × H) |
| Weight | Approx. 285 kg |
| Supply | |
| Product code | EL-RAACLE-10787 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Computerized Air Conditioner Trainer Used For?
Because every component can be switched on or off on its own, students can treat the duct as a sequence of processes and see what each one, or any combination, does to the air passing through. A typical exercise sets the fan speed, preheats, cools and dehumidifies the air, humidifies it with steam and reheats it, then plots each state from the before-and-after temperature and humidity readings on the h-x diagram. The refrigerant pressures and temperatures locate the refrigeration process on a log p-h chart, and with the refrigerant flow rate the heating and cooling capacities are calculated, all logged on a PC through the included software.
What to Specify When Ordering
- Quantity — how many computerised air conditioner trainers are wanted.
- Power supply version — 230 V 1 phase at either 50 Hz or 60 Hz, to match the laboratory mains.
Frequently Asked Questions
What can be studied with the Computerized Air Conditioner Trainer?
Students examine how each component of an air conditioning system works and what it does to the air, alone or in combination, and determine heating and cooling capacities using the h-x and log p-h representations.
Which components are in the air duct?
The open air duct contains an air cooler (a direct evaporator with condensing unit), a steam humidifier, a fan, and air preheaters and reheaters, each of which can be switched on or off.
What are the humidifier and fan ratings?
The steam humidifier consumes 4 kW and gives 5,5 kg/h of steam in three stages; the fan uses 167 W, moves up to 1150 m³/h and runs at 1000 to 2600 min-1.
How is the refrigerant flow rate found?
The flow rate of the refrigerant is worked out from the pressure measurement, and it is measured over a range of 8 to 102 L/h.
How are measured values recorded?
Values appear on digital displays and are sent at the same time to a PC via USB, using the data acquisition software supplied with the trainer.
What is the condensing unit capacity?
Under 5/25 °C conditions the condensing unit delivers 2,3 kW of refrigeration capacity and consumes 968 W of power.
OEM Manufacturer
Buyers of the Computerized Air Conditioner Trainer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests refrigeration and air conditioning trainers and test rigs, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
