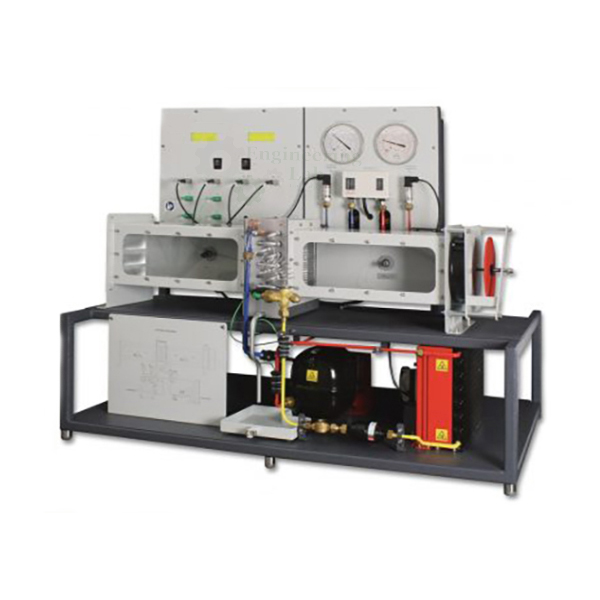

Computerized Recirculating Air Conditioning Trainer
Product Code : EL-RAACLE-10792
Computerized Recirculating Air Conditioning Trainer (code EL-RAACLE-10792) is a training unit for investigating air conditioning at a basic level, in which students use P-H and psychrometric charts to find the enthalpy change of air crossing an evaporator. An air-cooled condenser unit serves the evaporator in an air duct with humidity and temperature sensors on both sides, a manually adjustable fan moves the air, and the circuit has a TEV, sight glass, filter dryer and pressure switch, with USB data logging.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Purpose | Investigating air conditioning at a basic level using P-H and psychrometric charts |
| Main arrangement | Air-cooled condenser unit connected to an evaporator located in an air duct |
| Duct sensors | Relative humidity and temperature sensors on both sides of the evaporator |
| Airflow | Small fan, manually adjustable |
| Air measurements | Air temperature and humidity recorded before and after each stage |
| Refrigerant measurements | Pressures and temperatures recorded; flow rate determined from the pressure measurement |
| Refrigeration circuit | High and low pressure gauges, pressure switch, sight glass, filter dryer and TEV valve |
| Pressure transducers | In the circuit, connected to the instrumentation |
| Display | Digital displays |
| PC connection | USB, with data acquisition software included |
| Steam humidifier | |
| Power consumption | 4 kW |
| Steam capacity | 5,5 kg/h, switchable in three stages |
| Fan | |
| Power consumption | 167 W |
| Maximum volumetric flow | 1150 m³/h |
| Speed | 1000 to 2600 min-1 |
| Maximum pressure | 460 Pa |
| Heating, cooling and duct | |
| Air preheater | 1 kW, switchable in two stages |
| Air reheater | 2 kW, switchable in two stages |
| Air duct | 300 × 350 mm (W × H) |
| Direct evaporator (air cooler) | 6 kW |
| Condensing unit | |
| Power consumption | 968 W at 5/25 °C |
| Refrigeration capacity | 2,3 kW at 5/25 °C |
| Refrigerant | |
| Refrigerant | R134a/22/etc |
| Filling volume | 3,3 kg |
| CO2-equivalent | 2,1 t |
| Measuring ranges | |
| Differential pressure | 0 to 100 Pa |
| Temperature | 5 × 0 to 50 °C; 4 × -100 to 200 °C |
| Humidity | 5 × 10 to 90% |
| Refrigerant pressure | -1 to 15 bar; -1 to 24 bar |
| Refrigerant flow rate | 8 to 102 L/h |
| Learning content | |
| Superheat and sub-cooling | Determining superheat and sub-cooling |
| COP | Determining the coefficient of performance (COP) |
| Compression efficiency | Determining isentropic and non-isentropic efficiencies of the compression stage |
| Psychrometric charts | Learning to use psychrometric charts |
| Enthalpy change | Determining the enthalpy change in the airflow |
| P-H chart | Learning to use a pressure-enthalpy chart |
| Airflow and COP | Effect of air flow rate on COP |
| Power, dimensions and weight | |
| Power supply | 230 V, 50 Hz, 1 phase; or 230 V, 60 Hz, 1 phase |
| Dimensions | Approx. 1600 × 800 × 1500 mm (L × W × H) |
| Weight | Approx. 230 kg |
| Supply | |
| Product code | EL-RAACLE-10792 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Computerized Recirculating Air Conditioning Trainer Used For?
The trainer links the air side and the refrigerant side of a simple air conditioner, so that the heat taken from the air can be set against the work done on the refrigerant. Students set the fan by hand, read the air temperature and humidity on each side of the evaporator and use the psychrometric chart to find the enthalpy change of the airflow. From the refrigerant pressures and temperatures they plot the process on the pressure-enthalpy chart, determine superheat, sub-cooling and the isentropic efficiency of compression, and work out the coefficient of performance, repeating at other air flow rates to see how the COP changes.
What to Specify When Ordering
- Quantity — the number of recirculating trainers needed.
- Frequency — whether the 230 V single phase supply on site is 50 Hz or 60 Hz.
Frequently Asked Questions
What do students learn on the recirculating air conditioning trainer?
They determine superheat, sub-cooling, coefficient of performance and compression efficiencies, find the enthalpy change in the airflow, and learn to use psychrometric and pressure-enthalpy charts.
Where are the air sensors placed?
Relative humidity and temperature sensors sit on both sides of the evaporator in the air duct, so the state of the air is known before and after it is cooled.
Which components are in the refrigeration circuit?
The circuit has high and low pressure gauges, a pressure switch, a sight glass, a filter dryer and a TEV valve, with pressure transducers connected to the instrumentation.
Can the airflow be varied?
Yes, the fan that drives air down the duct is adjusted by hand, which allows the effect of air flow rate on COP to be investigated.
How are readings logged?
Readings show on digital displays and can be passed straight to a PC over USB with the data acquisition software that is included.
What are its dimensions and weight?
Its overall size is approximately 1600 × 800 × 1500 mm (L × W × H), with a weight of about 230 kg.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Computerized Recirculating Air Conditioning Trainer at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its refrigeration and air conditioning trainers and test rigs go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
