Cut Section Model of Rotary Hermetic Compressor
Product Code : EL-RAACLE-10798

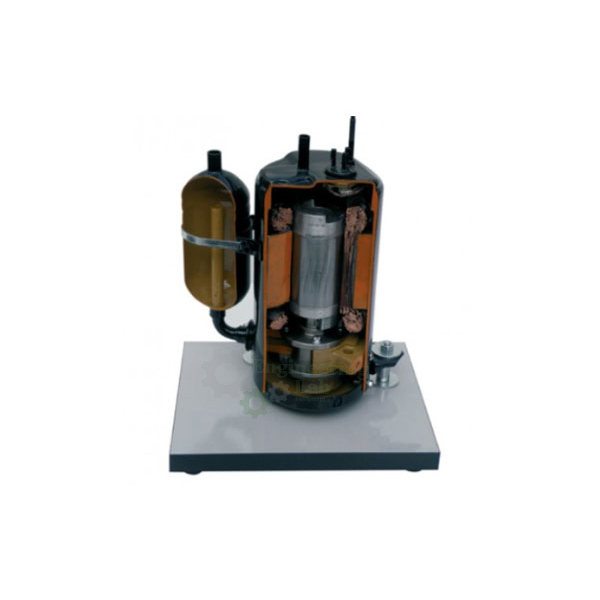

Cut Section Model of Rotary Hermetic Compressor (code EL-RAACLE-10798) is a classroom cutaway of a rotary compressor, built from its original parts and opened up so that the internal construction and the working of the mechanism can be followed. The stationary cylinder, the roller on the shaft eccentric and the spring-loaded sealing blade are all visible; the painted model stands on a metal or wooden base, is approx. 500 × 400 × 500 mm, weighs 35 kg and has a key card.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Construction | Made from the original parts of a rotary compressor, suitably sectioned to expose the internal construction |
| Finish | Suitably painted |
| Base | Metal or wooden |
| Supplied with | Key card |
| Dimensions | Approx. 500 × 400 × 500 mm (L × W × H) |
| Weight | Approx. 35 kg |
| Compressor parts shown | |
| Main parts | Stationary cylinder, roller and shaft |
| Eccentric | On the shaft, carrying the roller |
| Blade | Set in a slot of the cylinder and kept in contact with the roller by a spring |
| Blade movement | Moves in and out of the slot to follow the rotor as it rotates |
| Sealing blade | Separates the suction and discharge sides |
| Roller motion | Rotates with the shaft, always touching the cylinder wall |
| Supply | |
| Product code | EL-RAACLE-10798 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Section Model of Rotary Hermetic Compressor Used For?
Rotary compressors of this rolling-piston type are common in small air conditioners and refrigerators, and their action is hard to picture from a drawing alone. On the sectioned model students can pick out the eccentric on the shaft, the roller that runs round the cylinder wall, and the spring-loaded blade that rides on the roller and divides the suction side from the discharge side. Following one revolution shows how the space ahead of the roller shrinks to compress the gas while fresh gas is drawn in behind it, and the key card names each part.
What to Specify When Ordering
- Quantity — how many rotary compressor models are needed.
- Base — a metal or a wooden base.
Frequently Asked Questions
What does the rotary compressor model show?
It shows the stationary cylinder, the roller mounted on the eccentric of the shaft, and the blade in the cylinder slot that separates the suction and discharge sides.
Why is the blade called a sealing blade?
Because it separates the suction and discharge parts of the cylinder; a spring keeps it pressed against the roller as it moves in and out of its slot.
How does the roller move?
When the shaft turns, the roller on its eccentric rotates as well and stays in contact with the cylinder wall throughout each revolution.
Is the model made from genuine parts?
Yes, it is built from the original parts of a rotary compressor, sectioned and painted to show the fine constructional details.
What are its size, weight and accessories?
It measures about 500 × 400 × 500 mm, weighs approx. 35 kg, stands on a metal or wooden base and is supplied with a key card.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Cut Section Model of Rotary Hermetic Compressor at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its refrigeration and air conditioning trainers and test rigs go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
