Computerized Cooling Tower Test Bench
Product Code : EL-RAACLE-10790

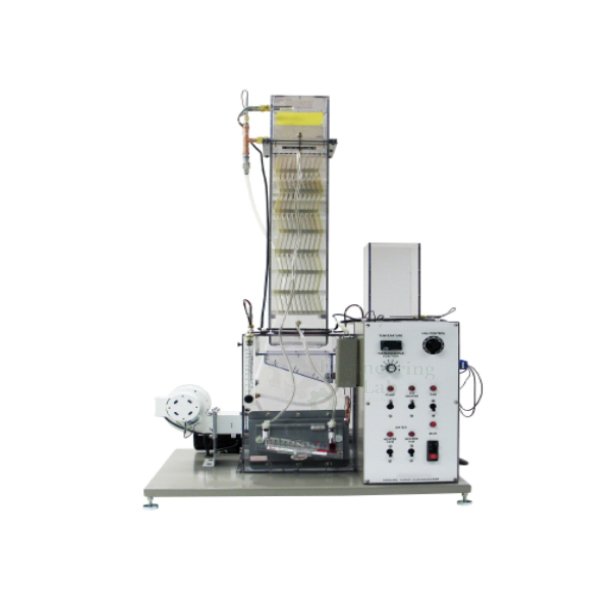

Computerized Cooling Tower Test Bench (code EL-RAACLE-10790) is a test bench on which the main components and working of a forced-ventilation wet cooling tower are examined. Water warmed in a tank by a 500, 1000 or 1500 W heater is pumped to an atomiser and trickles down a wet deck of 110 m²/m³ specific surface in a transparent 150 × 150 mm column, against air from a 250 W fan, and its readings are logged on a PC by USB.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Wet cooling tower with forced ventilation |
| Water circuit | Water heated in a tank, pumped to an atomiser and sprayed over the wet deck surface |
| Flow arrangement | Water trickles from top to bottom while air flows from bottom to top |
| Heat transfer | Directly from water to air by convection and evaporation |
| Evaporated water | Volume recorded |
| Airflow | Generated by a fan and adjusted with a throttle valve |
| Cooling column | Transparent, for observing the wet deck surface and trickling water |
| Recorded parameters | Volumetric air flow rate, air and water temperatures, air humidity, water flow rate |
| Display | Digital displays |
| Data acquisition | Included software with PC connection via USB; changes of state of the air shown in an h-x diagram |
| Cooling column | |
| Wet deck specific surface | 110 m²/m³ |
| Cross-section | 150 × 150 mm |
| Airflow measurement | Via orifice, 80 mm diameter |
| Heater | |
| Heater stages | 500 W, 1000 W and 1500 W (adjustable in three stages) |
| Thermostat | Switches off at 50 °C |
| Fan | |
| Power consumption | 250 W |
| Maximum pressure difference | 430 Pa |
| Maximum volumetric flow | 13 m³/min |
| Pump and tank | |
| Pump maximum head | 70 m |
| Pump maximum flow rate | 100 L/h |
| Additional water tank | 4,2 L |
| Measuring ranges | |
| Differential pressure (air) | 0 to 1000 Pa |
| Water flow rate | 12 to 360 L/h |
| Temperature | 2 × 0 to 50 °C; 3 × 0 to 100 °C |
| Relative humidity | 10 to 100% |
| Learning content | |
| Thermodynamics | Thermodynamic principles of the wet cooling tower |
| h-x diagram | Changes of state of the air in the h-x diagram |
| Cooling capacity | Determination of the cooling capacity |
| Energy study | Energy balances |
| Process parameters | Calculation of process parameters such as maximum cooling distance and cooling zone width |
| Power, dimensions and weight | |
| Power supply | 230 V, 50 Hz, 1 phase; or 230 V, 60 Hz, 1 phase |
| Dimensions | Approx. 1200 × 600 × 1600 mm (L × W × H) |
| Weight | Approx. 125 kg |
| Supply | |
| Product code | EL-RAACLE-10790 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Computerized Cooling Tower Test Bench Used For?
Wet cooling towers reject heat from power, process and air conditioning plants by letting warm water give up heat to air, mostly through the evaporation of a small part of the water. On the bench students set the heater stage and the airflow with the throttle valve, then record water and air temperatures, humidity, flow rates and the volume of water evaporated while watching the film run down the wet deck. Plotting the air states on the h-x diagram and balancing the energy of water and air gives the cooling capacity and process parameters such as the cooling zone width and maximum cooling distance.
What to Specify When Ordering
- Quantity — how many cooling tower benches are required.
- Power version — 230 V, 1 phase, made for either 50 Hz or 60 Hz mains.
Frequently Asked Questions
How does the cooling tower bench work?
Heated water is sprayed over the wet deck and trickles down while a fan blows air upwards, so the water loses heat to the air through convection and evaporation.
Can the inside of the column be seen?
Yes. The cooling column is transparent, so the wet deck surface and the trickling water can be observed while a test is running.
How is the water heated and the airflow set?
A heater adjustable in three stages of 500, 1000 and 1500 W warms the water, with a thermostat that switches off at 50 °C; the fan airflow is adjusted with a throttle valve.
What is measured during a test?
Volumetric air flow rate, air and water temperatures, air humidity, water flow rate and the volume of water evaporated, shown on digital displays and logged on a PC over USB.
What are the fan and pump ratings?
The fan uses 250 W, with a maximum pressure difference of 430 Pa and a maximum flow of 13 m³/min; the pump has a maximum head of 70 m and a maximum flow of 100 L/h.
How much space does the bench take up?
Allow roughly 1200 by 600 mm of floor space; the bench is about 1600 mm tall and its weight is around 125 kg.
OEM Manufacturer
Buyers of the Computerized Cooling Tower Test Bench deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests refrigeration and air conditioning trainers and test rigs, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
