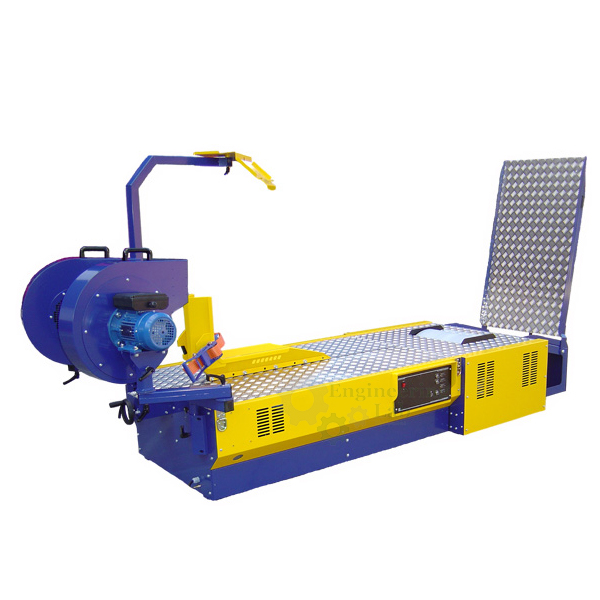

Motor Cycle Dynamometer Test Bench
Product Code : EL-TELE-10700
Motor Cycle Dynamometer Test Bench (code EL-TELE-10700) is a roller-type chassis dynamometer for testing two-wheelers, from individual engine units to complete vehicles ranging from scooters to big sport bikes. The motorcycle's wheel drives a non-slip chrome roller fitted with a safety brake, wheel and roller speed sensors give the readings, and a pneumatic automatic wheel clamp holds the machine without straps. Its 3 mm steel monobloc chassis houses the exhaust extraction and cooling fans under a chequer plate deck.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Test range | Application-specific tests from individual engine unit to complete vehicle, scooter to big sport bike |
| Roller | Non-slip chrome roller with groove for alignment check |
| Roller braking | Safety brake and roller brake |
| Speed sensing | Wheel speed sensor and roller speed sensor |
| Wheel clamp | Pneumatic automatic wheel clamp; no straps required, 1 person loading |
| Alignment check | Wheel clamp and roller together allow a frame alignment check |
| Access ramp | Integral folding ramp that doubles as a safety barrier |
| Safety barriers | With Perspex screens; guards included |
| Engine cooling | Engine cooling fans with outlets for engine and exhaust pipes |
| Rear cooling | Rear tyre cooling fan with outlet for rear tyre, motorcycle brake and silencers |
| Exhaust extraction | Exhaust gas extraction fan; cover plates for the exhaust extraction inlets |
| Fan housing | Cooling and extraction fans all housed within the chassis |
| Chassis | Monobloc, 3 mm steel with chequer plate deck |
| Optional | Electric starter control |
| Dimensions | 1600 × 900 × 1200 mm (L × W × H) |
| Weight | Approx. 280 kg |
| Product code | EL-TELE-10700 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Motor Cycle Dynamometer Test Bench Used For?
A chassis dynamometer lets a motorcycle be run under load while it stays in one place: the driven wheel turns a roller, and the speed and braking of that roller show how the machine performs. The technician wheels the motorcycle up the folding ramp, the pneumatic clamp holds the wheel, and the driven wheel rests on the chrome roller. During the run the fans cool the engine, exhaust, rear tyre and brake, the extraction fan draws off exhaust gas, and the wheel and roller speed sensors give the readings. The ramp folds up as a safety barrier, and the clamp and grooved roller also allow a frame alignment check.
What to Specify When Ordering
- Quantity — the number of dynamometers required.
- Electric starter control — whether the optional electric starter control is to be included.
Frequently Asked Questions
What range of motorcycles can be tested?
Application-specific tests are possible from an individual engine unit up to a complete vehicle, covering everything from scooters to big sport bikes.
How is the motorcycle held on the bench?
A pneumatic automatic wheel clamp holds it without straps, so one person can load the machine, and together with the roller the clamp allows a frame alignment check.
Which sensors does the dynamometer use?
It has a wheel speed sensor and a roller speed sensor, and the non-slip chrome roller carries a safety brake, with a separate roller brake also fitted.
How are the engine and tyres kept cool during a test?
Engine cooling fans blow through outlets onto the engine and exhaust pipes, and a rear tyre cooling fan has an outlet for the rear tyre, motorcycle brake and silencers.
What safety features are included?
The integral folding access ramp doubles as a safety barrier, further safety barriers have Perspex screens, guards are part of the standard unit and the roller has a safety brake.
What does the standard unit include?
The standard unit comes with engine cooling fans, a rear tyre cooling fan, an exhaust gas extraction fan, guards, the ramp and the pneumatic automatic wheel clamp, built into a 3 mm steel monobloc chassis. Electric starter control is optional.
OEM Manufacturer
Buyers of the Motor Cycle Dynamometer Test Bench deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests thermal engineering trainers, engine test rigs and steam and air apparatus, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
