Single Stage Air Compressor Setup with Data Acquisition
Product Code : EL-TELE-10708

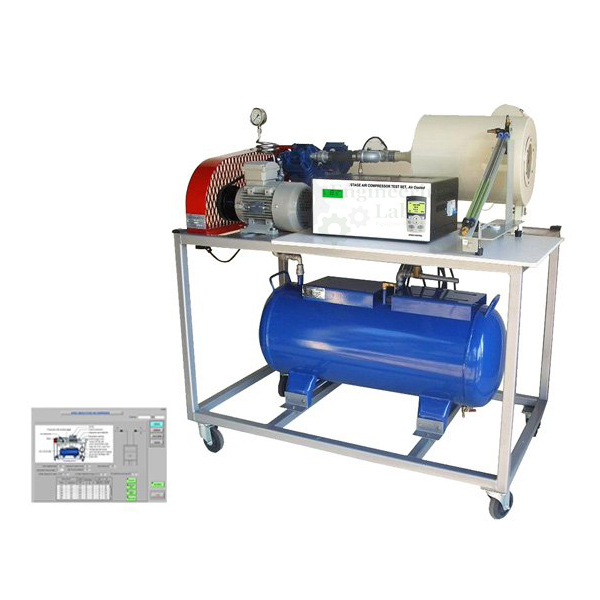

Single Stage Air Compressor Setup with Data Acquisition (code EL-TELE-10708) is a compressed air generation system, made up of a single-stage, one-cylinder piston compressor and a drive unit, used to study how compressed air plants work and to find the compressor's characteristic curve and efficiencies. The 750 W compressor has an intake capacity of 150 L/min at 8 bar and delivers into a 20 L pressure vessel, driven by V-belt at a speed that can be set.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Compressor | |
| Type | Single-stage piston compressor, 1 cylinder |
| Power consumption | 750 W |
| Bore | 65 mm |
| Stroke | 46 mm |
| Nominal speed | 980 min-1 |
| Positive operating pressure | 8 bar |
| Pressure rating | 10 bar |
| Intake capacity | 150 L/min at 8 bar |
| Safety valve | 10 bar |
| Drive | Drive unit powering the compressor by V-belt; compressor speed can be set |
| Vessels and controls | |
| Intake vessel | 20 L; air settles here before compression |
| Pressure vessel | 16 bar, volume 20 L |
| Blow-off | Blow-off valve with silencer for a steady flow operating mode |
| Pressure limiting | Pressure switch with solenoid valve |
| Measuring ranges | |
| Temperature | 1 × 0–200 °C; 1 × 0–100 °C |
| Pressure | 0–16 bar; -1 to 1 bar |
| Flow rate | 0–150 L/min |
| Speed | 0–1000 min-1 |
| Experiments | Characteristic curve; volumetric efficiency; mechanical efficiency; set-up and operating behaviour of the system |
| Power supply | 230 V, 50 Hz, 1 phase; or 230 V, 60 Hz, 1 phase |
| Dimensions | 900 × 800 × 1600 mm (L × W × H) |
| Weight | Approx. 130 kg |
| Supply | |
| Product code | EL-TELE-10708 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Single Stage Air Compressor Setup with Data Acquisition Used For?
Compressed air plants supply air as an energy source, for example to drive machines in mining, pneumatic controls in assembly plants or tyre inflators at petrol stations, and the compressor at their centre raises the air pressure using mechanical energy. On the setup, air drawn into the intake vessel settles, is compressed in the cylinder and stored in the pressure vessel, from which it can be released through the blow-off valve and silencer to hold a steady flow. Students set the compressor speed, read pressures, temperatures, flow rate and speed, and from these plot the characteristic curve and work out volumetric and mechanical efficiency.
What to Specify When Ordering
- Quantity — the number of compressor setups required.
- Power supply — the 230 V, 50 Hz or 230 V, 60 Hz single phase version.
Frequently Asked Questions
What does the setup consist of?
A single-stage, one-cylinder piston compressor and a drive unit, which together form a complete compressed air generation system with an intake vessel, a pressure vessel, a blow-off valve with silencer and safety devices.
What are the compressor's main data?
It has a 65 mm bore and 46 mm stroke, consumes 750 W, runs at a nominal 980 min-1 and gives an intake capacity of 150 L/min at 8 bar.
How large are the vessels?
The intake vessel holds 20 L, and the pressure vessel has a volume of 20 L and is rated at 16 bar.
How is the pressure kept within limits?
A pressure switch with a solenoid valve limits the pressure, a 10 bar safety valve protects the system, and a blow-off valve with silencer allows a steady flow operating mode.
Which experiments can be carried out?
Students determine the characteristic curve, the volumetric efficiency and the mechanical efficiency of the compressor and study how a compressed air generation system is set up and behaves in operation.
How do I place an order for this setup?
An enquiry goes in through the Add To Cart enquiry button shown here, or the number of setups and their delivery location can be sent using the contact page.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Single Stage Air Compressor Setup with Data Acquisition at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its thermal engineering trainers, engine test rigs and steam and air apparatus go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
