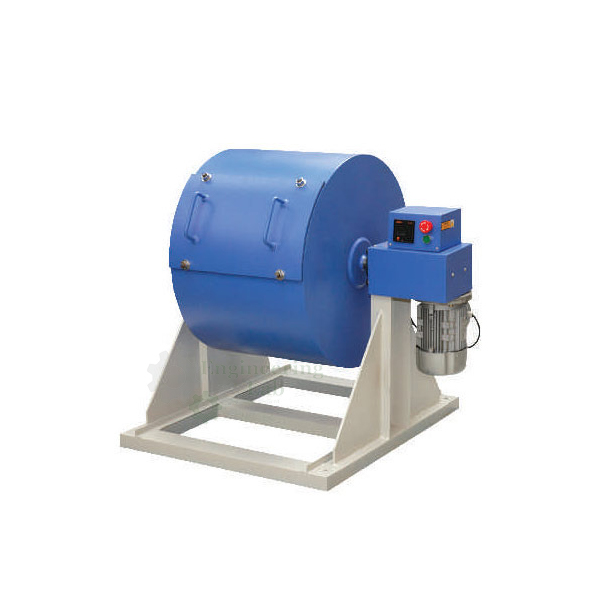

Digital Los Angles Abrasion Testing Machine
Product Code : EL-ATLE-10469
Digital Los Angles Abrasion Testing Machine (code EL-ATLE-10469) is a Los Angeles type abrasion machine with an electronic control unit, used for abrasion tests on aggregates. Its rolled steel drum has an inside diameter of 711 mm and an internal length of 508 mm and turns at 31-33 r.p.m.; an automatic counter stops the machine at a preset revolution count, and an interlock device locks the drum in position.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Control | Electronic control unit |
| Drum | Rolled steel |
| Drum inside diameter | 711 mm |
| Drum internal length | 508 mm |
| Drum speed | 31-33 r.p.m. |
| Revolution counter | Automatic; stops the machine when the preset revolution count is reached |
| Drum lock | Interlock device to lock the drum into position |
| Internal shelf | Provided with the machine |
| Standards | EN 1097-2, EN 12697-17, EN 13450; ASTM C131, ASTM C535; AASHTO T96 |
| Product code | EL-ATLE-10469 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Digital Los Angles Abrasion Testing Machine Used For?
The Los Angeles method breaks down a graded aggregate sample by tumbling it with steel balls in a rotating drum, and the proportion of fine material produced shows how resistant the aggregate is to fragmentation and wear. The operator locks the drum with the interlock while loading the sample and charge, enters the number of revolutions on the control unit and starts the run; the counter halts the drum automatically at the set count, after which the material is sieved and the loss worked out. The standards listed are EN 1097-2, EN 12697-17 and EN 13450, ASTM C131 and C535, and AASHTO T96.
What to Specify When Ordering
- Quantity — the number of digital abrasion machines required.
Frequently Asked Questions
What are the drum dimensions?
The rolled steel drum has an inside diameter of 711 mm and an internal length of 508 mm, and it is rotated at 31-33 r.p.m. during a test.
Does the machine stop on its own at the end of a test?
Yes. The automatic counter is set to the required number of revolutions before the run, and the machine stops automatically when that preset count is reached.
How is the drum held still for loading?
An interlock device on the drum allows the operator to lock it into position, so the drum stays in place while the sample is charged or emptied.
Is an internal shelf included?
Yes, the machine is provided with an internal shelf inside the drum, which picks up the sample and charge as the drum turns and drops them on each revolution.
Which standards are listed for it?
The standards listed are EN 1097-2, EN 12697-17 and EN 13450, ASTM C131 and C535, and AASHTO T96, covering European, ASTM and AASHTO procedures.
What does the test result show?
The loss in mass after tumbling, expressed as a percentage of the original sample, shows how resistant the aggregate is to fragmentation; a lower figure indicates a harder-wearing aggregate.
OEM Manufacturer
Buyers of the Digital Los Angles Abrasion Testing Machine deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests aggregate testing equipment for grading, strength, abrasion and shape tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
