Cut Back Bitumen Distillation Equipment
Product Code : EL-BTLE-10443

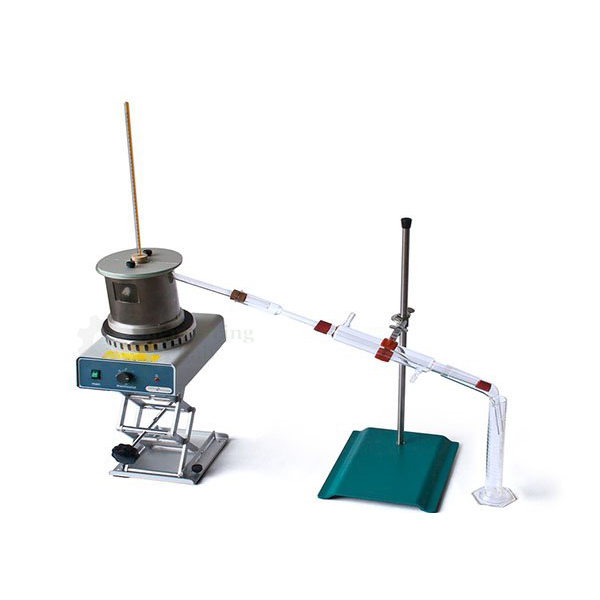

Cut Back Bitumen Distillation Equipment (code EL-BTLE-10443) is a distillation set-up for testing cutback bitumen, built around a heavy gauge shield on a platform with chimney and an electric hot plate controlled by an energy regulator. It is supplied with one 500 ml distillation flask and one 100 ml crow receiver, while the ASTM 8C thermometer, covering -2 to +400 °C in 1 °C subdivisions, is not part of the supply.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Distillation testing of cutback bitumen |
| Shield | Heavy gauge, lagged with asbestos cover in two parts, with wire gauze |
| Heating | Electric hot plate with energy regulator |
| Mounting | Shield supported on a platform with chimney, arranged for fitting to a stand |
| Thermometer | ASTM 8C, -2 to +400 °C, subdivisions 1 °C; the set is supplied without the thermometer |
| Supplied with | |
| Distillation flask | 500 ml, one |
| Receiver | 100 ml crow receiver, one |
| Standards | ASTM D402, AASHTO T78 |
| Supply | |
| Product code | EL-BTLE-10443 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Back Bitumen Distillation Equipment Used For?
A cutback bitumen is a binder thinned with a volatile solvent so that it can be sprayed or mixed at lower temperatures, and distillation shows how much solvent it carries and how volatile that solvent is. A measured sample is heated in the 500 ml flask behind the shield, the vapour is condensed and collected in the 100 ml crow receiver, and the volumes distilled are noted as the thermometer reaches set temperatures. The residue left in the flask is then tested to check the base bitumen. The standards listed are ASTM D402 and AASHTO T78.
What to Specify When Ordering
- Quantity — the number of distillation sets required.
- Thermometer — the ASTM 8C thermometer (-2 to +400 °C), as the set is supplied without one.
Frequently Asked Questions
What is the Cut Back Bitumen Distillation Equipment used for?
It is used for distillation tests on cutback bitumen, finding the share of volatile solvent in the binder and leaving a residue for further testing.
How is the flask heated?
An electric hot plate controlled by an energy regulator supplies the heat, with the heavy gauge shield, supported on its platform with chimney, around the flask.
Which glassware is included?
Glassware in the set is a 500 ml distillation flask and a 100 ml crow receiver, one of each, the receiver collecting the distillate.
Is a thermometer included?
The set is supplied without a thermometer. The thermometer specified for it is ASTM 8C, reading -2 to +400 °C with 1 °C subdivisions.
Which standards are listed?
The standards listed are ASTM D402 and AASHTO T78, both of which cover the distillation of cut-back asphaltic products.
OEM Manufacturer
The Cut Back Bitumen Distillation Equipment is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests bitumen and asphalt testing equipment for binder tests, mix preparation and specimen testing for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
