Mixer with Heating Jacket
Product Code : EL-BTLE-10953

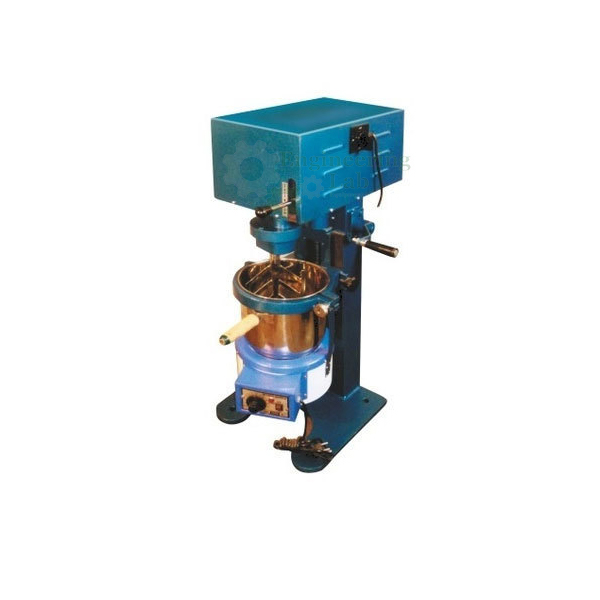

Mixer with Heating Jacket (code EL-BTLE-10953) is a motorized two-speed mixer, planetary or revolving, whose 6 litre bowl is fitted with a heating jacket that heats the samples from the bottom of the bowl while they are mixed. Used in conjunction with an Iso Mantle electric heater as a bench mounting mixer for asphalt samples, it operates from a 230 V A.C. single phase supply and has a removable, height-adjustable bowl with beater and whisk.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Mixing samples of asphalt; used in the electronics, civil and industrial segments |
| Drive | Motorized, two speed options: planetary or revolving |
| Bowl | 6 litre nominal capacity |
| Heating jacket | Fitted to the bowl, heating the samples at the bottom of the bowl |
| Heater | Used in conjunction with an Iso Mantle electric heater |
| Mounting | Bench mounting |
| Bowl handling | Bowl can be held and removed with the instrument; height adjustable |
| Voltage | 230 V A.C., single phase |
| Supplied with | Bowl, beater and whisk |
| Product code | EL-BTLE-10953 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Mixer with Heating Jacket Used For?
Preparing a bituminous specimen starts with blending hot aggregate and binder into an even mix, and the mix cools quickly once it leaves the oven, so this mixer heats the bowl itself. The batch is placed in the 6 litre bowl, the heating jacket and Iso Mantle heater keep the base of the bowl hot, and the beater works the material in planetary or revolving action until the binder coats all the aggregate. The bowl height is set to suit the beater, and when mixing is finished the bowl is lifted off so the mix can be moulded or tested.
What to Specify When Ordering
- Quantity — the number of mixers required.
Frequently Asked Questions
How does the Mixer with Heating Jacket keep the sample hot?
Its 6 litre bowl is fitted with a heating jacket that heats the samples at the bottom of the bowl, and the mixer is used in conjunction with an Iso Mantle electric heater.
What mixing actions are available?
The motor offers two speed options, described as planetary and revolving, for working the asphalt sample in the heated bowl.
Can the bowl be removed?
Yes. The mixing bowl is held in the instrument and can be removed from it, and the bowl height is adjustable to suit the mixing tool.
What tools come with it?
A bowl, a beater and a whisk are provided with the mixer for preparing samples of asphalt on the laboratory bench.
What supply does it need?
The mixer operates on 230 V A.C. with a single phase supply, and it is designed as a bench mounting unit for the laboratory.
OEM Manufacturer
The Mixer with Heating Jacket is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests bitumen and asphalt testing equipment for binder tests, mix preparation and specimen testing for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
