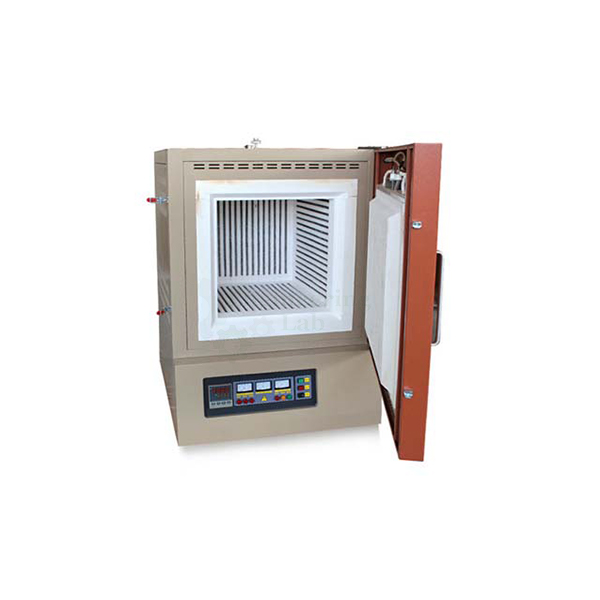

Muffle Furnace

Product Code : EL-CTLE-10339

Muffle Furnace (code EL-CTLE-10339) is a high-temperature laboratory furnace for the loss on ignition test on cement and building lime. Rated at 4200 W, it reaches a maximum of 1200 °C in a chamber of 210 × 280 × 145 mm (l × w × h), while the whole unit measures 510 × 650 × 650 mm and weighs approximately 70 kg.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Muffle Furnace Used For?

Cement that has been stored for a long time or exposed to damp air takes up water and carbon dioxide, and the loss on ignition test measures how much of this volatile matter a sample holds. A portion is weighed, placed in the hot chamber and ignited until its mass stops changing, then cooled and weighed again. The mass lost, expressed as a percentage of the starting mass, is reported with the chemical analysis of the cement or building lime and helps judge its condition before use. The standard listed for the furnace is EN 196-2.

What to Specify When Ordering

• Quantity — the number of furnaces required.

Frequently Asked Questions

Which test is the Muffle Furnace intended for?
It is intended for the loss on ignition test on cement and building lime, in which a weighed sample is strongly heated and the loss in mass is recorded.

What maximum temperature and power rating does it have?
The furnace reaches a maximum temperature of 1200 °C, and its heating has a power rating of 4200 W.

What size of chamber is provided?
The heated chamber has inside dimensions of 210 × 280 × 145 mm, given in the order length, width and height.

How much space and weight should be allowed for?
The overall dimensions are 510 × 650 × 650 mm, and the furnace weighs approximately 70 kg, so the bench or stand under it must carry that load.

What does a high loss on ignition say about a cement?
A high value usually shows that the cement has taken up moisture and carbon dioxide from the air during storage, so the result is used to judge its condition before use.

What should an export enquiry for the furnace include?
An export enquiry should state the quantity, the destination country and port or city, delivery terms such as FOB or CIF, any packing requirements and any tender reference.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Muffle Furnace at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its cement testing equipment such as Vicat and Blaine apparatus, moulds, mixers and curing equipment go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.

Related Cement Testing Equipment

• Mortar Mixer Machine — mortar mixer with a 6 litre bowl and adjustable revolving and planar speeds.
• Le Chatelier Moulds — spring-tensioned split-cylinder moulds, 30 mm i.d. × 30 mm high, for cement expansion tests.
• Vibrating Machine — spring-mounted cube vibrator at 12000 ± 400 vibrations per minute with 70.6 mm cube mould.
• Length Comparator — two-column steel frame with adjustable anvil and 12.5 × 0.001 mm digital gauge for mortar specimens.
• Laboratory Cement Autoclave — stainless steel cement autoclave with PID heater control, safety valve and vertical test bar rack.

See the full Cement Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other cement testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of furnaces required and the delivery location through the contact page; the Add To Cart button on this page also adds the Muffle Furnace to an enquiry.
