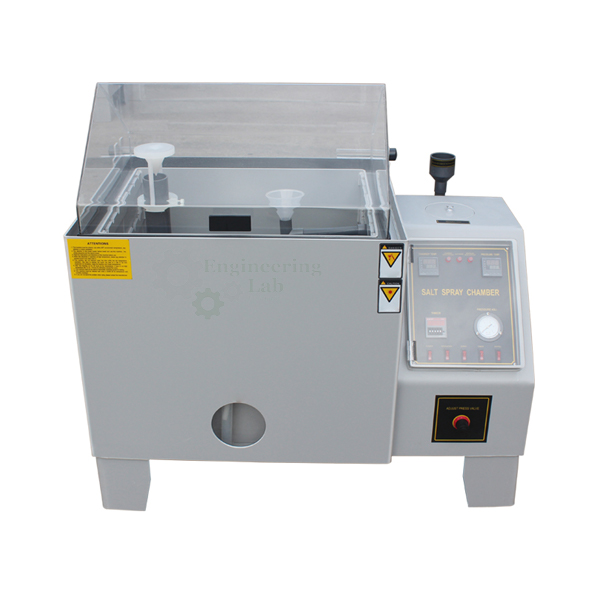

Salt Spray Chamber
Product Code : EL-LEAA-11030
Salt Spray Chamber (code EL-LEAA-11030) is a corrosion test cabinet used to assess how coating systems, surface coatings and platings resist a salt-laden environment. It has a 2000 L chamber, a digital PID microcomputer controller with a ±0.1 °C control error, a range from normal room temperature to 60 °C, adjustable spray time through a fine glass nozzle and 4 wheels, runs on 240 V and needs a 2 HP air compressor, which is not included.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Assessing corrosion resistance of coating systems against a salt-laden environment; testing surface coatings and plating |
| Applications | Products treated by plating, anodizing, spraying and anti-rust treatment |
| Chamber capacity | 2000 L |
| Temperature range | Normal room temperature to 60 °C |
| Accuracy | ±0.5 to 1 °C |
| Construction material | Stainless steel |
| Material type | Mild steel |
| Interior and exterior | Hard PVC, anti-corrosion and anti-ageing, smooth surface |
| Cover | Hard transparent PMM or hard PVC, so the specimen status can be viewed at any time |
| Demist function | Water sealed chamber cover |
| Nozzle | Fine glass nozzle for uniform diffusion of spray; not blocked by crystal |
| Spray time | Adjustable by the operator |
| Remote operation | Remote test monitoring and operation control |
| Air supply | Requires a 2 HP air compressor (not included) |
| Wheels | 4 |
| Power source | Electric, 240 V |
| Display mode | Digital |
| Standards | ISO 9227, ASTM B117; CNS, JIS, DIN, GB, BS, IEC and MIL standards |
| Control system | |
| Controller | Digital PID microcomputer control instrument with P.I.D. automatic tuning |
| Control error | ±0.1 °C |
| Keypad | Thin film keyboard buttons |
| Display | Digital, direct display |
| Control method | Temperature control and power output managed by the microcomputer algorithm |
| Safety features | |
| Overheating protection | Double overheating protection; all heaters over-temperature protected by electronic and mechanical devices |
| Water level | Low water level alarm and water shortage warning system |
| Supply | |
| Product code | EL-LEAA-11030 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Salt Spray Chamber Used For?
In a salt spray test, coated or plated specimens are exposed in a closed chamber to a fine mist of salt solution, and the time taken for corrosion or coating damage to appear is used to compare the protection given by different coatings and surface treatments. The operator loads the specimens, connects the 2 HP air compressor that feeds the fine glass nozzle, sets the chamber temperature and spray time on the PID controller and closes the water sealed cover; the specimens can then be watched through the transparent cover or monitored remotely. The standards listed are ISO 9227 and ASTM B117, along with CNS, JIS, DIN, GB, BS, IEC and MIL standards.
What to Specify When Ordering
- Quantity — the number of chambers required.
- Cover — hard transparent PMM or hard PVC for the chamber cover.
- Air supply — a 2 HP air compressor to run the spray, which is not included with the chamber.
Frequently Asked Questions
What is the Salt Spray Chamber used to test?
It assesses the corrosion resistance of coating systems against a salt-laden environment and tests surface coatings and plating, including products that have been plated, anodized, sprayed or given an anti-rust treatment.
How large is the chamber and what temperatures can it hold?
The chamber capacity is 2000 L, and the temperature range runs from normal room temperature to 60 °C, with an accuracy of ±0.5 to 1 °C.
How is the chamber temperature controlled?
A digital PID microcomputer controller with P.I.D. automatic tuning manages temperature and power output, with an error of ±0.1 °C, thin film keyboard buttons and a direct digital display.
Is an air compressor supplied with the chamber?
No. The chamber needs a 2 HP air compressor to operate the spray, and that compressor is not included in the supply.
Which safety features are fitted?
The chamber has double overheating protection, a low water level alarm with a water shortage warning, and electronic and mechanical over-temperature protection on all heaters, and its cover is water sealed.
Which standards are listed for it?
The standards listed are ISO 9227 and ASTM B117, together with CNS, JIS, DIN, GB, BS, IEC and MIL standards.
OEM Manufacturer
Buyers of the Salt Spray Chamber deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
