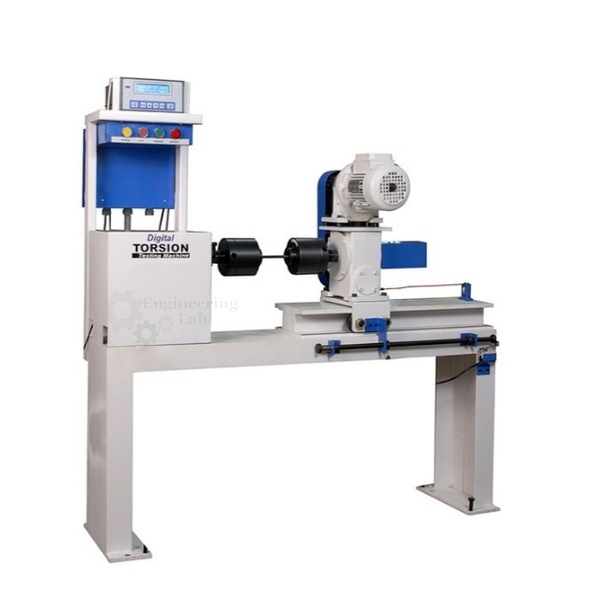

Digital Torsion Testing Machine
Product Code : EL-STLE-10560
Digital Torsion Testing Machine (code EL-STLE-10560) is a motor-driven machine for torsion and twist testing of metal rods and flats, with torque read by a torque cell and the twist angle by a rotary encoder. A geared motor applies torque to the specimen through a gear box, both readings appear on the LCD display of the Data Acquisition System, and torque accuracy is ±1% from 4% to 100% of machine capacity.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Torsion and twist tests on various metal rods and flats |
| Torque measurement | Torque cell |
| Measuring range | One range, with high resolution throughout the range |
| Torque accuracy | ±1% in the range from 4% to 100% of machine capacity |
| Torque application | Geared motor applying torque to the specimen through a gear box |
| Angle of twist | Measured by rotary encoder |
| Display | Torque and angle of twist on the LCD display of the Data Acquisition System (DAS) |
| PC connection | Facility for connecting the DAS panel to a PC |
| Product code | EL-STLE-10560 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Digital Torsion Testing Machine Used For?
A torsion test twists a specimen about its own axis and records the torque needed against the angle of twist, showing how the metal behaves in shear; for round bars these readings are used to work out shear stress and the modulus of rigidity. The operator fixes the rod or flat in the machine and the geared motor turns it while the torque cell and rotary encoder feed their signals to the Data Acquisition System. Torque and angle are read from the LCD as the test proceeds, and the DAS panel can be linked to a PC to keep the readings.
What to Specify When Ordering
- Quantity — the number of torsion testing machines required.
- Specimens — the type and size of the metal rods or flats to be tested.
Frequently Asked Questions
What does the Digital Torsion Testing Machine measure?
It measures the torque acting on the specimen, using a torque cell, and the angle through which the specimen twists, using a rotary encoder.
How is torque applied to the specimen?
A geared motor applies the torque through a gear box, while the torque cell measures it and the rotary encoder follows the angle of twist.
How close is the torque reading?
Torque is measured within ±1% over the span from 4% to 100% of machine capacity, in a single range that keeps high resolution throughout.
Where are the readings displayed, and can they go to a computer?
Torque and angle of twist are shown on the LCD display of the Data Acquisition System, and the DAS panel has a facility for connection to a PC.
What can be learned from a torsion test?
Plotting torque against angle of twist shows how a metal behaves in shear. For round bars the readings are used to calculate shear stress and the modulus of rigidity of the material.
OEM Manufacturer
The Digital Torsion Testing Machine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests steel and materials testing machines, hardness testers, metallography equipment and rebar machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Steel Testing Equipment
- Radius Bending Machine — rebar ring former with guarded forming rolls that stop when the guard opens.
- Abrasion Cut Off Machine — 300 mm abrasive wheel cutter with 50 Ltr coolant tank for bars, tubes and sections.
- Stirrup Bending Machine — 1.5 kW stirrup bender for rebar up to 16 mm with 3 – 15 r/min bending speed.
See the full Steel Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other steel testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of machines and the rods or flats to be tested and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
