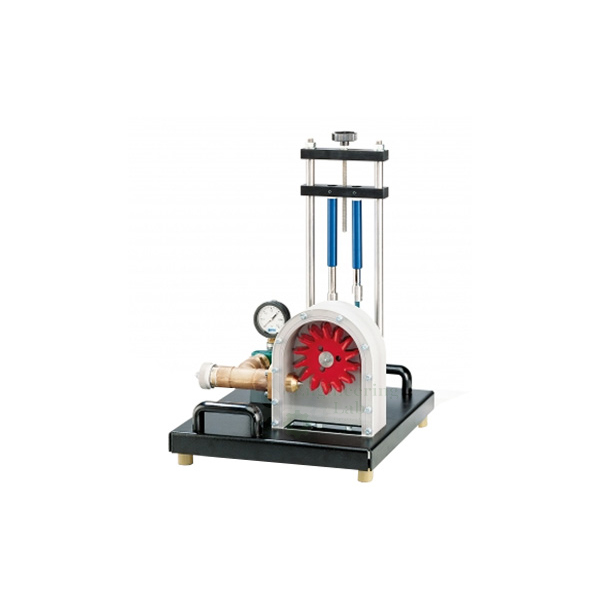

Demonstration Pelton Turbine
Product Code : EL-FMLE-10656
Demonstration Pelton Turbine (code EL-FMLE-10656) is a model of an impulse turbine used to show the design and function of a Pelton turbine and to determine its torque, power and efficiency. A needle nozzle with a 10 mm jet drives a 14-blade Pelton wheel of 132 mm external diameter inside a housing with a transparent front panel, and a band brake read on spring balances loads it; rated output is 5 W at 500 min-1 with approx. 30 L/min at H = 2 m.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Turbine type | Model of an impulse turbine (Pelton turbine) |
| Main parts | Pelton wheel, needle nozzle used as distributor, band brake for loading the turbine, housing with transparent front panel |
| Operating principle | Pressure energy converted into kinetic energy entirely in the distributor; the jet strikes the blades tangentially and is turned through approximately 180° |
| Flow adjustment | Adjustable nozzle needle for setting different nozzle cross-sections and so the flow rate |
| Viewing | Transparent front panel for observing the water flow, the Pelton wheel and the nozzle |
| Torque measurement | Force measurement on the band brake, read on spring balances |
| Inlet pressure | Manometer showing the water pressure at the turbine inlet |
| Speed measurement | Non-contact speed sensor required; marking on the brake drum for non-contact speed measurement |
| Installation | Stands securely on the work surface |
| Experiments | Torque, power and efficiency; graphical representation of characteristic curves for torque, power and efficiency |
| Pelton turbine | |
| Output | 5 W at 500 min-1, approx. 30 L/min, H = 2 m |
| Needle nozzle | |
| Jet diameter | 10 mm |
| Pelton wheel | |
| Blades | 14 |
| Blade width | 33,5 mm |
| External diameter | 132 mm |
| Measuring ranges | |
| Force | 2 × 0 to 10 N |
| Pressure | 0 to 1 bar |
| Dimensions and weight | |
| L × W × H | 1000 × 800 × 1200 mm |
| Weight | 90 kg |
| Supply | |
| Product code | EL-FMLE-10656 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Demonstration Pelton Turbine Used For?
In a Pelton turbine the whole pressure drop takes place in the nozzle, so the wheel turns in air and is driven only by the momentum of the free jet as its blades turn the water back on itself. Students set the needle position to fix the jet, tighten the band brake in stages and record the spring balance readings, the inlet pressure on the manometer and the wheel speed from the non-contact sensor. Torque, power and efficiency follow from these readings, and plotting them against speed for several needle settings gives the characteristic curves of the turbine.
What to Specify When Ordering
- Quantity — the number of Pelton turbine models required.
Frequently Asked Questions
How does a Pelton turbine differ from a reaction turbine?
It works on the impulse principle: the nozzle alone turns the pressure of the supply into jet velocity, and the impulse of the jet passes to the wheel as the blades turn it through approximately 180°.
How is the flow through the nozzle changed?
Moving the needle in or out alters the open area of the nozzle, and with it the flow reaching the wheel. The needle nozzle gives a jet diameter of 10 mm.
What are the Pelton wheel dimensions?
The Pelton wheel carries 14 blades, each 33,5 mm wide, and has an external diameter of 132 mm.
How are torque and inlet pressure measured?
Torque comes from the force on the band brake, read on spring balances with a 2 × 0 to 10 N range, while a manometer reading 0 to 1 bar shows the pressure at the turbine inlet.
What output does the model give?
The turbine is rated at 5 W at 500 min-1, with a flow of approx. 30 L/min and a head of 2 m.
How is the rotational speed measured?
Rotational speed is taken with a non-contact speed sensor, which is required for this measurement, using the marking provided on the brake drum.
OEM Manufacturer
The Demonstration Pelton Turbine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests fluid mechanics apparatus for flow measurement, pipe friction, pumps and hydrostatics for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
