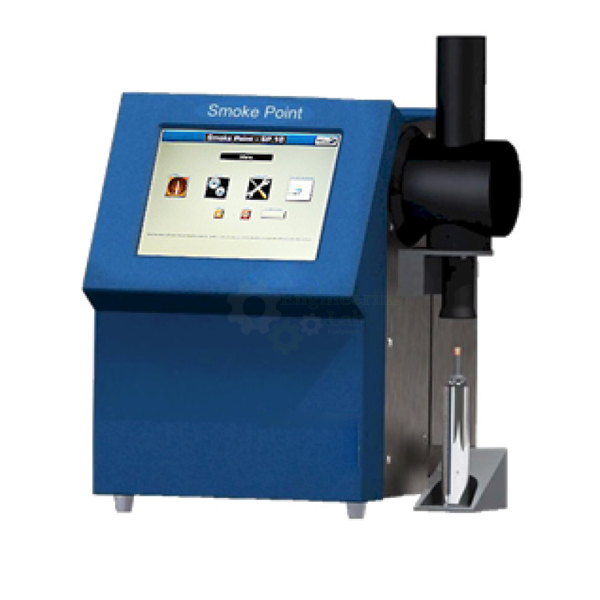

Automatic Smoke Point Apparatus
Product Code : EL-FTLE-10893
Automatic Smoke Point Apparatus (code EL-FTLE-10893) is an automated instrument used to measure the smoke point of kerosenes and aviation turbine fuels, an indication of how much smoke a fuel produces in a diffusion flame. Once the operator has prepared and positioned the candle, it lights the sample, allows a five minute stabilization time, takes three flame height readings at 0.1 mm resolution and reports the corrected mean in less than 10 minutes, storing up to 100 000 results.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Smoke point of kerosenes and aviation turbine fuels |
| Operator steps | Prepare the candle (phase 1), position it on the conveyor (phase 2), key in sample details and start the test (phase 3) |
| Automatic sequence | Candle lit automatically; five minutes stabilization; three flame height determinations; mean value calculated |
| Result reporting | Mean rounded, corrected with the memorized lamp correction factor (calculated automatically) and reported in the format of the test method |
| Test duration | Less than 10 minutes |
| Flame height resolution | 0.1 mm |
| Saved with each result | Smoke point in 0.1 mm, sample type, sample ID, date and time, barometric pressure, operator name, test method, calibration information, instrument serial number and software version |
| Results storage | Up to 100 000 results in a built-in database |
| LAN connectivity | Ethernet port RJ45; results can be sent to a LIMS |
| Printer output | Serial port (printer is optional) |
| Data output | USB (2), Ethernet |
| Repeatability and reproducibility | r = 0.6, R = 0.9 (manual test method: r = 2.8, R = 3.8) |
| Electrical | 112 to 230 V, 2 A, 50/60 Hz |
| Weight | 10 kg (22 lb) |
| Dimensions | 330 × 390 × 413 mm (13 × 15 × 16 in), W × D × H |
| Standards | ASTM D1322, IP 598 |
| Product code | EL-FTLE-10893 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Automatic Smoke Point Apparatus Used For?
The smoke point is the greatest height of flame, in millimetres, at which a fuel burns in a standard wick-fed lamp without smoking. It depends on the hydrocarbon composition of the fuel: the more aromatic the fuel, the smokier the flame, so a high smoke point marks a fuel of low smoke-producing tendency. In the manual method the flame is judged by eye, and the rating varies between operators. Here the operator only prepares the candle, sets it on the conveyor and keys in the sample details; the instrument lights it, measures the flame height three times and saves the corrected result for printing, USB transfer or a LIMS. The standards listed are ASTM D1322 and IP 598.
What to Specify When Ordering
- Quantity — the number of instruments required.
- Printer — whether the optional printer for the serial port is wanted.
Frequently Asked Questions
What does the smoke point show about a fuel?
It indicates the relative smoke-producing tendency of kerosenes and aviation turbine fuels in a diffusion flame; the more aromatic the fuel, the smokier the flame, so a high smoke point means low smoke production.
What does the operator do, and what is automated?
The operator prepares the candle, positions it on the conveyor and keys in the sample details; lighting, the five minute stabilization, the three flame height readings, the mean and the lamp correction are then automatic.
How long does a test take?
A test takes less than 10 minutes, including the five minute stabilization period before the three flame height determinations are made at 0.1 mm resolution.
What repeatability and reproducibility figures are given?
Repeatability is r = 0.6 and reproducibility R = 0.9, against r = 2.8 and R = 3.8 for the manual test method.
How are results stored and exported?
Up to 100 000 results are kept in a built-in database with sample, operator and calibration details; they can be printed through the serial port, copied to USB or sent to a LIMS over Ethernet.
Which standards are listed for it?
The standards listed are ASTM D1322 and IP 598, the smoke point methods for kerosenes and aviation turbine fuels.
OEM Manufacturer
The Automatic Smoke Point Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests fuel and oil testing apparatus for flash point, viscosity, distillation and calorific value for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Fuel Testing Equipment
- Flash and Fire Point Apparatus — closed cup flash point tester with brass cup, sliding shutter cover and electric or gas heating.
- Cleveland Flash Point Apparatus — semi-automatic Cleveland open cup tester for flash and fire points from 79 to 400 °C.
- Aniline Point Apparatus — thin film aniline point tester with 6 V light well, 750 W heater and 400 mL bath.
