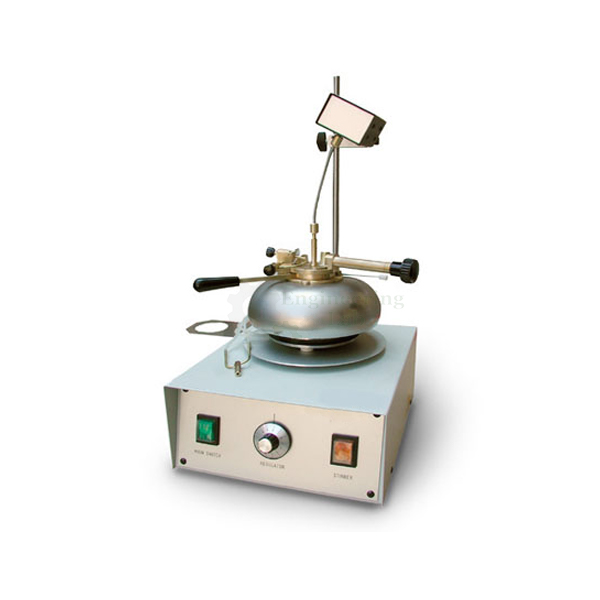

Flash and Fire Point Apparatus
Product Code : EL-FTLE-10890
Flash and Fire Point Apparatus (code EL-FTLE-10890) is a closed cup tester used to determine the flash points of a wide range of products, including fuel oils and lubricating oils, with two optional stirring speeds for the sample. A brass test cup sits under a sliding cover with pilot flame, test flame reference bead, built-in stirrer and thermometer ferrule, heated either by a 1000 W nickel-chromium electric heater with stepless control or by a gas burner, on a cast iron base.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Flash point determination by the closed cup method, for a wide range of products |
| Applications | Detecting contamination of fuel oils and lubricating oils by volatile and flammable materials for shipping and safety regulations; characterizing hazardous waste samples |
| Sample stirring | Two optional stirring speeds |
| Cover mechanism | Slides the shutter open and applies the test flame at the turn of a knob |
| Cover fittings | Pilot flame, test flame reference bead, built-in stirrer and plated brass thermometer ferrule |
| Test cup | Brass |
| Base | Cast iron, with line cord receptacle and switch for the accessory slow-speed stirrer |
| Dimensions | 9.5 × 8 × 22.5 in (24 × 20 × 57 cm), l × w × h, with optional stirrer motor installed |
| Net weight | 25 lbs (11.4 kg) |
| Standards | ASTM D93; AASHTO T73-811; IP 34; ISO 2719; DIN 51758; FTM 791-1102; NF M 07-019 |
| Electrically heated model | |
| Heater | 1000 W nickel-chromium, with stepless variable control for temperature rate-of-rise settings |
| Heater housing | Stainless steel, with cooling vents |
| Gas heated model | |
| Burner | Built-in nickel-plated brass natural gas burner; can be supplied with an artificial gas burner or liquid propane burner |
| Accessories | |
| Stirrer motor | 115/230 V 50/60 Hz slow speed gear motor; rotates the stirrer at 105 rpm for Procedure A and 250 rpm for Procedure B; includes adjustable support bracket and mounting rod; installs in the base of the tester |
| Thermometers | 20 to 230 °F; -5 to +110 °C; 200 to 700 °F; 90 to 370 °C |
| Cover assembly | Complete, with shutter, flame exposure device, stirrer and thermometer ferrule |
| Test cups | Brass test cup with heat resistant handle; nickel plated test cup with heat resistant handle |
| Supply | |
| Product code | EL-FTLE-10890 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Flash and Fire Point Apparatus Used For?
In a closed cup flash point test the sample is heated at a controlled rate in a covered cup while being stirred, and at intervals a small flame is dipped into the vapour space; the lowest temperature at which the vapour flashes is the flash point. A low reading on a fuel or lubricating oil can reveal contamination by volatile, flammable material. The operator fills the brass cup, sets the heating rate, runs the stirrer at the speed the procedure calls for and turns the cover knob to open the shutter and apply the test flame. The standards listed are ASTM D93, AASHTO T73-811, IP 34, ISO 2719, DIN 51758, FTM 791-1102 and NF M 07-019.
What to Specify When Ordering
- Quantity — the number of testers required.
- Heating — the electrically heated model with 1000 W heater, or the gas heated model with a natural gas, artificial gas or liquid propane burner.
- Stirrer motor — whether the 115/230 V slow speed stirrer motor accessory is wanted.
- Thermometers and spares — the thermometer ranges and any extra brass or nickel plated test cups or cover assembly needed.
Frequently Asked Questions
What method does the apparatus use?
It determines flash points by the closed cup method, with a cover that fits over the brass test cup and two optional stirring speeds for the sample.
Is it available with gas or electric heating?
Both versions are made: the electric model has a 1000 W nickel-chromium heater with stepless variable control in a vented stainless steel housing, and the gas model has a built-in nickel-plated brass natural gas burner, with artificial gas or liquid propane burners also offered.
How is the test flame applied?
A cover mechanism slides the shutter open and applies the test flame at the turn of a knob; the cover also carries a pilot flame and a test flame reference bead.
At what speeds does the stirrer motor run?
The accessory slow speed gear motor, for 115/230 V 50/60 Hz, turns the stirrer at 105 rpm for Procedure A and 250 rpm for Procedure B, and it installs in the base with its bracket and rod.
Which thermometers can be supplied?
Thermometers with ranges of 20 to 230 °F, -5 to +110 °C, 200 to 700 °F and 90 to 370 °C are offered as accessories.
Which standards are listed?
The standards listed are ASTM D93, AASHTO T73-811, IP 34, ISO 2719, DIN 51758, FTM 791-1102 and NF M 07-019.
OEM Manufacturer
The Flash and Fire Point Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests fuel and oil testing apparatus for flash point, viscosity, distillation and calorific value for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
