Orsat Gas Analysis Apparatus
Product Code : EL-FTLE-10896

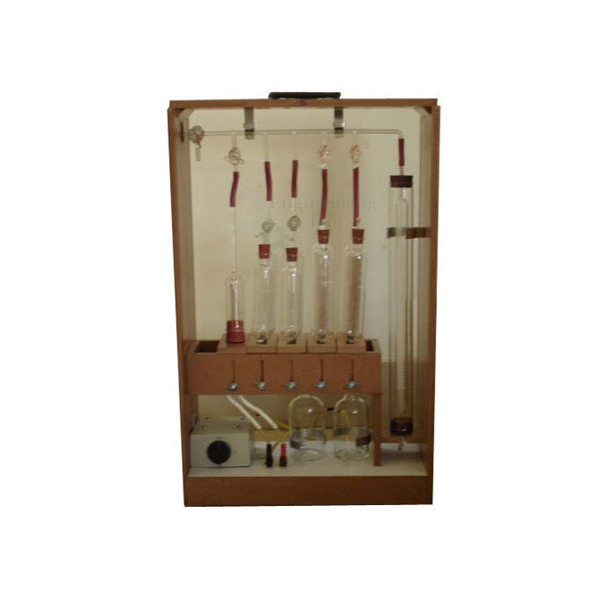

Orsat Gas Analysis Apparatus (code EL-FTLE-10896) is a set-up for analysing a gas sample by absorbing its components one at a time and measuring the loss in volume. It has a liquid filled levelling bottle, a water jacketed graduated glass burette, three glass absorption pipettes containing absorbing reagents and a 3 compartment Tedlar gas expansion bag, all contained in a case and mounted with support brackets.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Levelling bottle | Liquid filled; moves the sample through the burette and pipettes |
| Burette | Graduated glass, water jacketed for temperature stability |
| Absorption pipettes | Three, glass, containing absorbing reagents |
| Gas expansion bag | 3 compartment Tedlar bag, hung behind the pipettes and connected to them through its valves |
| Housing | Components contained in a case and mounted using support brackets |
| Product code | EL-FTLE-10896 |
| Supplier | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Orsat Gas Analysis Apparatus Used For?
Orsat analysis gives the composition of a gas sample by volume, and its classic use is checking flue gas from boilers and furnaces, where the components absorbed in turn are carbon dioxide, oxygen and carbon monoxide. The operator draws a measured volume into the water jacketed burette with the levelling bottle, then pushes it into each absorption pipette in turn and back again; the reagent takes up one component, and the drop in volume read on the burette gives its percentage. The 3 compartment gas expansion bag is connected to the pipettes through its valves.
What to Specify When Ordering
- Quantity — the number of apparatus sets required.
Frequently Asked Questions
What are the main parts of the apparatus?
It has a liquid filled levelling bottle, a water jacketed graduated glass burette, three glass absorption pipettes with absorbing reagents and a 3 compartment Tedlar gas expansion bag, mounted in a case with support brackets.
Why is the burette water jacketed?
The water jacket keeps the burette temperature stable, because a change in temperature would change the gas volume and upset the readings taken between absorptions.
How is the gas moved through the pipettes?
The liquid filled levelling bottle is raised and lowered to move the sample from the burette into each pipette and back, so the volume can be read after each absorption.
Which gases are usually measured by the Orsat method?
In flue gas work, the classic application of the method, the components absorbed are carbon dioxide, oxygen and carbon monoxide, each taken up by its own reagent.
About the Supplier
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India, supplies the Orsat Gas Analysis Apparatus together with its own fuel and oil testing apparatus for flash point, viscosity, distillation and calorific value. Engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas buy from the company, and tender and OEM enquiries are handled through the Tenders/OEM page.
