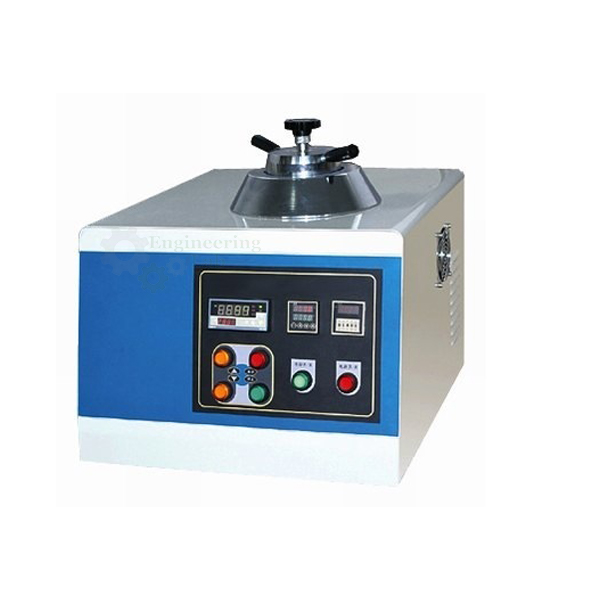

Specimen Mounting Press
Product Code : EL-STLE-10568
Specimen Mounting Press (code EL-STLE-10568) is an automatic press for mounting metallographic specimens in thermosetting materials, completing each cycle at the set heating temperature, holding time and acting force. It makes 2 specimens at a time in 25, 30, 40 or 50 mm diameter patterns, works at 0 to 2 MPa and 0 to 300 °C with water cooling, and has a maximum consumption of 1800 W on 220 V, 50 Hz.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Automatic mounting press for metallographic specimens |
| Automatic cycle | Finishes automatically at the set heating temperature, holding time and acting force |
| Specification patterns | 4, changeable by the operator to suit difficult specimens |
| Output | 2 specimens at a time |
| Mounting materials | All thermosetting materials, because of the cooling system |
| Pattern specimen diameters | 25 mm, 30 mm, 40 mm, 50 mm |
| Pressure | 0 to 2 MPa |
| Temperature | 0 to 300 °C |
| Holding time | 0 to 99 minutes 99 seconds |
| Cooling | Water cooling |
| Maximum consumption | 1800 W |
| Power | 220 V, 50 Hz |
| Outline dimensions | 615 × 510 × 500 mm |
| Weight | 110 kg |
| Product code | EL-STLE-10568 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Specimen Mounting Press Used For?
Small, irregular or fragile metal samples are hard to grind and polish by hand, so they are first set in a cylindrical mount of thermosetting resin. The operator places the specimen in the mould and adds the mounting material; the press then heats and compresses the charge to the set temperature and force, holds it for the set time and water cools it before the finished mount is taken out. The mount gives a flat, conveniently held piece for grinding, polishing and microscopic examination, and difficult specimens can be handled by changing to another of the specification patterns.
What to Specify When Ordering
- Quantity — the number of mounting presses required.
- Mount diameter — the pattern specimen sizes needed: 25 mm, 30 mm, 40 mm or 50 mm.
Frequently Asked Questions
What does the press control automatically?
It completes the mounting cycle by itself at the set heating temperature, holding time and acting force, and the operator can change between 4 specification patterns for difficult specimens.
Which mount sizes can be made?
Pattern specimens of 25 mm, 30 mm, 40 mm and 50 mm diameter can be produced, and the press makes 2 specimens in one cycle.
Which mounting materials can be used?
Because the press has a water cooling system, it is suitable for all thermosetting mounting materials.
What pressure, temperature and time settings are available?
Pressure is set from 0 to 2 MPa, temperature from 0 to 300 °C and holding time from 0 to 99 minutes and 99 seconds.
What are the power and size details?
Maximum consumption is 1800 W on a 220 V, 50 Hz supply. The press measures 615 × 510 × 500 mm and weighs 110 kg.
Why are metallographic specimens mounted?
Mounting sets a small or awkward sample in a block of resin so that it can be held squarely during grinding and polishing and stored for later examination.
OEM Manufacturer
Buyers of the Specimen Mounting Press deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests steel and materials testing machines, hardness testers, metallography equipment and rebar machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Steel Testing Equipment
- Spectro Sample Polisher Machine — automatic alundum disc grinder for spectro samples with dust suction, 300 to 350 mm disc.
- Bar Cutting Machine — lightweight one-shot rebar and TMT bar cutter for construction sites.
- Tensile Strength Testing Machine — 250 Kg digital tensile and elongation tester for metals, rubber, textiles, plastic, paper, wires and ropes.
See the full Steel Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other steel testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of presses and the mount diameters required and your delivery location through the contact page, or add the Specimen Mounting Press to the enquiry cart from this page.
