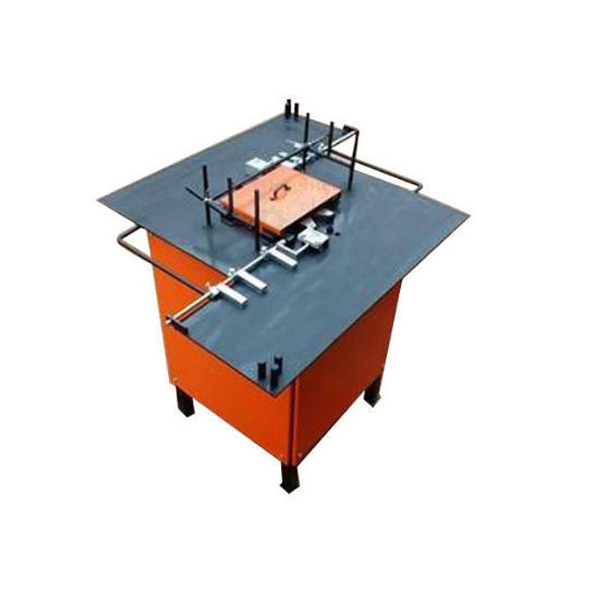

Stirrup Bending Machine
Product Code : EL-STLE-10573
Stirrup Bending Machine (code EL-STLE-10573) is a motor-driven bender for forming stirrups from reinforcement bars of up to 16 mm in diameter. Its 1.5 kW motor works on a 415 V supply at 1440 r/min, the bending speed is 3 – 15 r/min, the plate measures 750 × 600 × 10 mm and the machine weighs 250 Kg.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Bending rebar into stirrups |
| Bending rebar diameter | Up to 16 mm |
| Bending speed | 3 – 15 r/min |
| Motor power | 1.5 kW |
| Voltage | 415 V |
| Motor speed | 1440 r/min |
| Plate | 750 × 600 × 10 mm |
| Weight | 250 Kg |
| Product code | EL-STLE-10573 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Stirrup Bending Machine Used For?
Stirrups are the closed links that hold the main bars of beams and columns in position and help resist shear, and a structure needs them in large numbers, all bent to the same shape. The operator lays a bar of up to 16 mm diameter on the working plate and the machine bends it at a speed between 3 and 15 r/min, forming each corner in turn until the stirrup closes. Machine bending keeps the size of every stirrup the same, so the cage of bars fits the formwork as designed.
What to Specify When Ordering
- Quantity — the number of stirrup bending machines required.
- Bar size — the rebar diameters to be bent, up to 16 mm.
Frequently Asked Questions
What bar sizes can it bend?
It bends reinforcement rebar with a diameter of up to 16 mm into the stirrups used in concrete work.
What motor and supply does it use?
The motor is rated at 1.5 kW, runs at 1440 r/min and works on a 415 V supply.
How fast does it bend?
The bending speed ranges from 3 to 15 r/min, against a motor speed of 1440 r/min.
How large and heavy is the machine?
Its plate measures 750 × 600 × 10 mm and the complete machine weighs 250 Kg.
What details help with an overseas order?
For export, state the quantity, the destination country and port or city, the delivery terms wanted such as FOB or CIF, any packing needs and the tender reference if there is one.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Stirrup Bending Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its steel and materials testing machines, hardness testers, metallography equipment and rebar machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Steel Testing Equipment
- Tensile Strength Testing Machine — 250 Kg digital tensile and elongation tester for metals, rubber, textiles, plastic, paper, wires and ropes.
- Torsion Testing Machine — pendulum-dynamometer torsion tester for metal wires and tube sheet, 0.1/0.2 RPM, with flat and round grips.
- Abrasion Cut Off Machine — 300 mm abrasive wheel cutter with 50 Ltr coolant tank for bars, tubes and sections.
- U Bending Machine — gear-reduction bar bender on a cast iron bed with oil-bath shafts and hardened pressure rolls.
See the full Steel Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other steel testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of machines and the rebar diameters to be bent and the delivery location through the contact page; the Add To Cart button on this page also adds the Stirrup Bending Machine to an enquiry.
