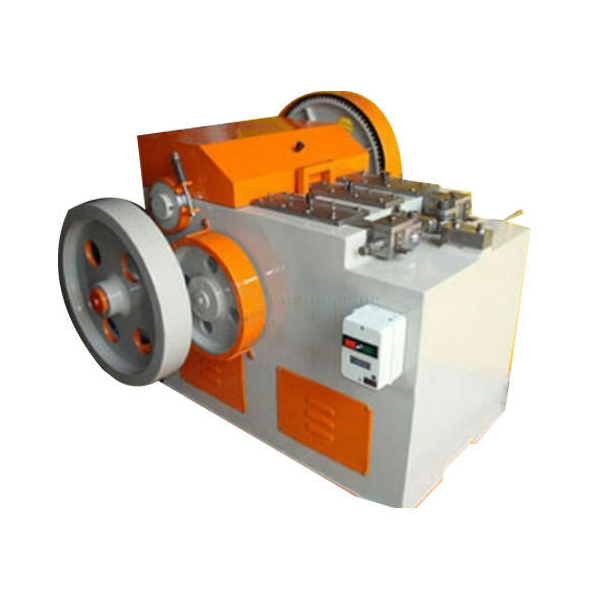

U Bending Machine
Product Code : EL-STLE-10572
U Bending Machine (code EL-STLE-10572) is a bar bending machine built on a C.I. (cast iron) casting bed designed to withstand heavy loads. Its main shaft and connecting rod rolls run in an oil bath on gun metal bush bearings, the steel fabricated main gears give the drive through gear reduction so that bending needs only a low power drive, and the pressure rolls and pin are hardened and tempered.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Machine type | Bar bending machine |
| Bed | C.I. casting, designed to withstand heavy loads |
| Lubrication | Main shaft and connecting rod rolls run in an oil bath |
| Bearings | Main shaft and connecting shaft run on gun metal bush bearings |
| Main gears | Steel fabricated |
| Drive | Through reduction of gears, for bending at low power drive |
| Pressure rolls and pin | Hardened and tempered |
| Product code | EL-STLE-10572 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the U Bending Machine Used For?
U bends are needed wherever a reinforcement bar has to turn back on itself, for example in links, hooks and U-shaped bars for beams and slabs. The operator places the bar against the pressure rolls and pin and starts the drive; the reduction gearing turns the main gears slowly with high force, so the bar is formed to shape without a large motor. The cast iron bed takes the bending forces, and the oil bath and gun metal bushes keep the shafts lubricated through repeated work.
What to Specify When Ordering
- Quantity — the number of U bending machines required.
Frequently Asked Questions
What is the bed made of?
The bed is a C.I. casting, that is cast iron, of a design intended to withstand heavy loads during bending.
How are the shafts lubricated and supported?
The main shaft and connecting rod rolls run in an oil bath, and the main and connecting shafts turn on gun metal bush bearings.
How is the drive arranged?
The main gears are fabricated from steel and the drive is given through a reduction of gears, which allows bending with a low power drive.
Which parts are hardened?
The pressure rolls and the pin, the parts that bear on the bar during bending, are hardened and tempered.
OEM Manufacturer
The U Bending Machine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests steel and materials testing machines, hardness testers, metallography equipment and rebar machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
